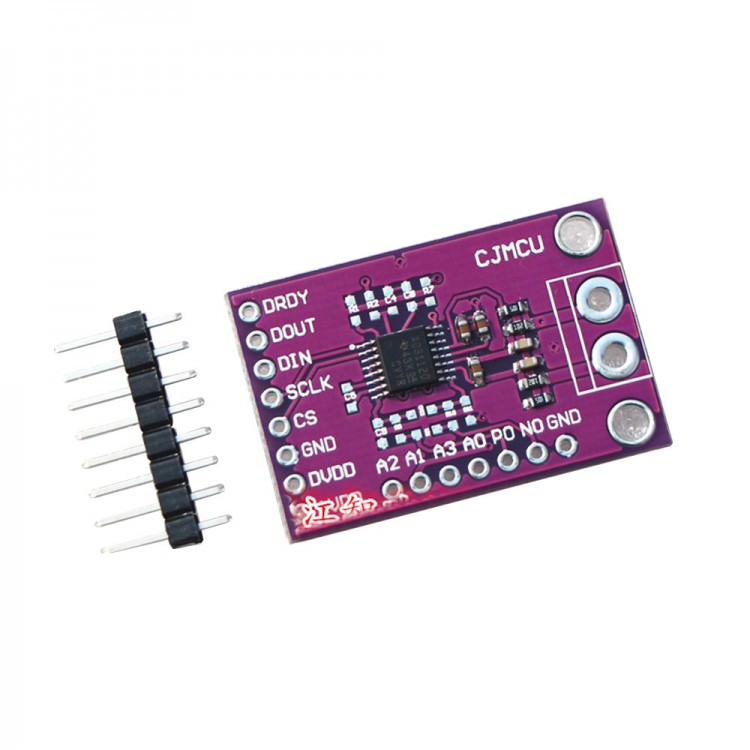

CJMCU K-Type ADS1120 Thermocouple Sensor Module Temperature Detection Board
Specifications:
- the working voltage : 2.3v ~ 5.5V
- Input : K type thermocouple
- Size :( length ) 35mm * ( width ) 35mm * ( height ) 0.9mm
- For K-type thermocouple, temperature range -200℃~+700℃, ±0.5°C precision
- Programmable gain: 1V/V-128V/V 2kSPS
Package List:
- 1 x Module
