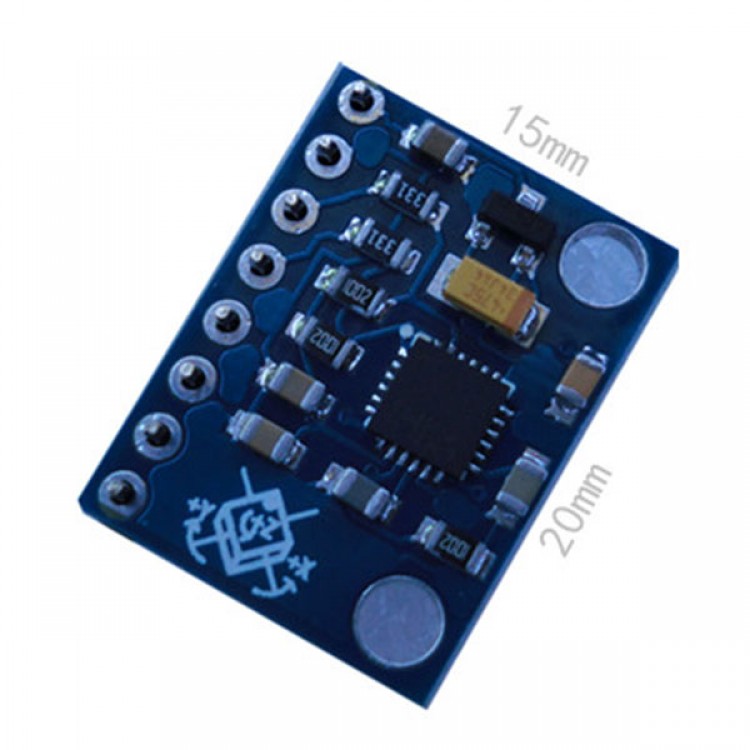

CJMCU-MPU-6881 6 Axis= 3 Axis Gyroscope + 3 Axis Acceleration SPI/ IIC Communication
Gyroscope Features
The triple-axis MEMS gyroscope in the MPU-6881 includes a wide range of features:
- Digital-output X-, Y-, and Z-axis angular rate sensors (gyroscopes) with a user-programmable fullscale
range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
- Digitally-programmable low-pass filter
- Gyroscope operating current: 3.2mA
- Factory calibrated sensitivity scale factor
- Self-test
2.2 Accelerometer Features
- The triple-axis MEMS accelerometer in MPU-6881 includes a wide range of features:
- Digital-output X-, Y-, and Z-axis accelerometer with a programmable full scale range of ±2g, ±4g,
±8g and ±16g and integrated 16-bit ADCs
- Accelerometer normal operating current: 450μA
- Low power accelerometer mode current: 7.27μA at 0.98Hz, 18.65μA at 31.25Hz
- User-programmable interrupts
- Wake-on-motion interrupt for low power operation of applications processor
- Self-test
