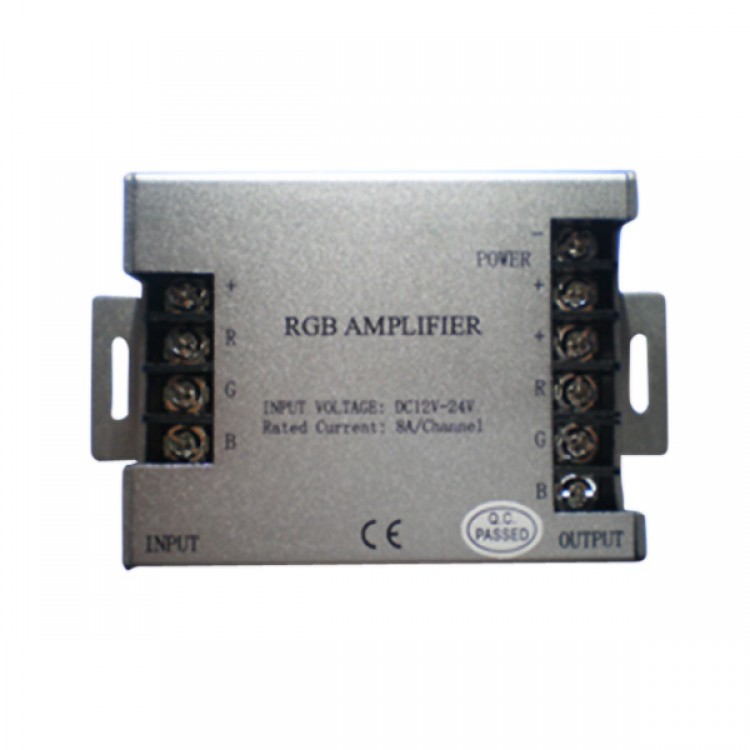

• CL-C1206 RGB  LED Amplifier Signal Repeater DC5V/12V/24V

CL-C1206 RGB LED Amplifier Signal Repeater DC5V/12V/24V

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.52
  • Price in reward points: 135 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.25 $12.98 $12.57 $12.03 Contact US
Quantity:

CL-C1206 RGB  LED Amplifier Signal Repeater DC5V/12V/24V
Details
- The signal repeater, as a component of lighting system. which work with led lighting , 3-channel controller,switch power. And form the lighting source.
Specfication:
- working tempreture:-20-60°C
- working voltage: 5V/120W
                             12V/288W
                              24V/400W
- dimension: L106×W64×H25mm
- package: L124×W74×H30mm
- N.W: 110g
- G.W: 145g
- Output CMOS mode
- Connect : common positive
- Load rated current :5A/annel
- Load max current : 8A/annel
- Compatible with PWM Conteoller
- function:  Amplify R.G.B output singal  of controller, increase the load capacity.

Pay attention:
- The working voltage is DC12V,not AC 12V
- check current,don't make the current short
- monut accorting to specification.
