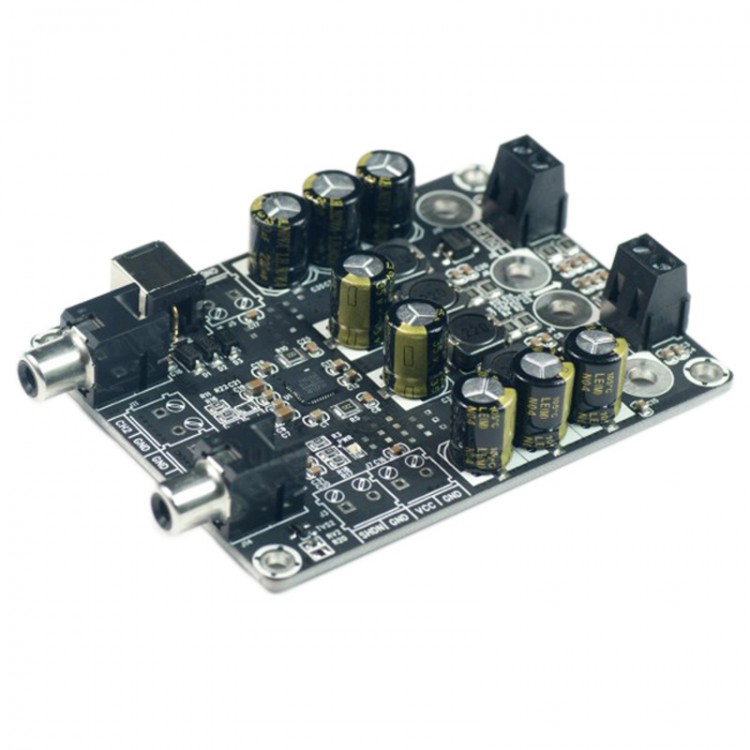

Class D MAX98400A 24V 2x20W Digital HIFI Stereo Amplifier Board Dual Channel for Audio DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.81
  • Price in reward points: 188 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.43 $18.06 $17.49 $16.74 Contact US
Quantity:

Class D MAX98400A 24V 2x20W Digital HIFI Stereo Amplifier Board Dual Channel for Audio DIY

Parameters Condition   Minimum Typical value Maximum
Voltage(V) R1=∞, V(RFGFN)=5V, Vvs=OPEN Ta=+25deg C   8   28
Ta=Tmin to Tmax   30 45
R1=∞, V(RFGFN)=0V, Vvs=5V Ta=+25deg C      50
Ta=Tmin to Tmax
  14 20
Electrostatic current(mA)
Input sensitivity(VRMS)       0.062
Input impedance(KOhm)       22 22
Gain(db) MAX98400A     26.4
Output power(W rm s)    THD+N 10% Vpvdc=18V  Rl=8Ohm   22
Rl=4Ohm   44
Efficiency(%) Po=8W, MAX98400A     91.2
Minimum load(Ohm)       8
Frequency response(KHz) -+3db   20   22k
Temperature(deg C )     0 25 50

Weight: 52g-+5g
Size: 91.44*68.69*16mm-+0.2

Package included:
- 1 x Amplifier Board
