Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $10.55 | $10.34 | $10.02 | $9.59 | Contact US |

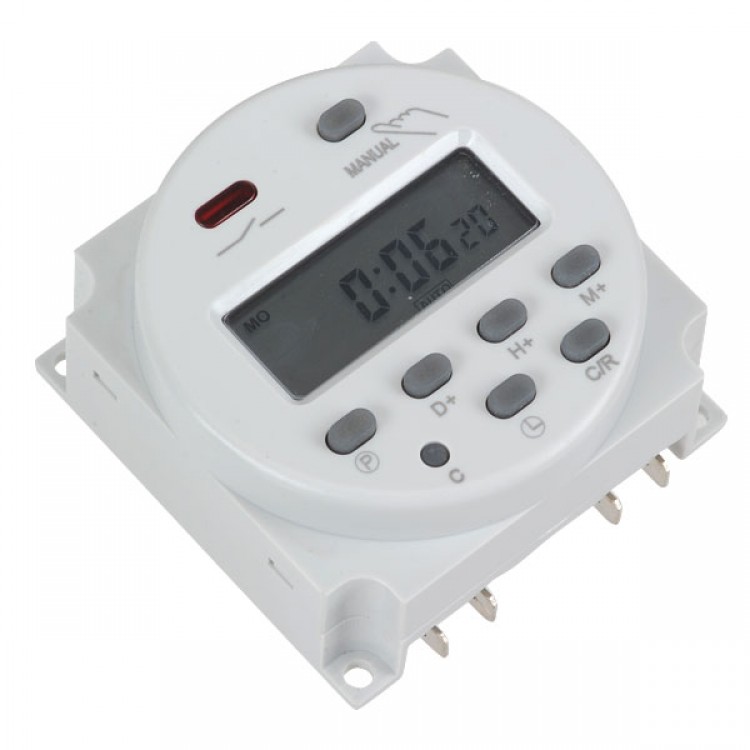

CN101A Digital LCD Programmable Timer DC 12V 16A Time Relay Switch
Descriptions:
- Panel mounted, advanced pre-setting one week before, digital electronic timer switch with daily programs, repeat programs with 17 on/off setting and manual over-ride, auto timer error correction +- 30 sec, weekly.
The program timer can automatically switch on and switch off various kinds of electric equipment according to fixed time.
Used widely to control the lamp, water heater, sprayer, bottler, preheater, agriculture facilities, broadcasting equipment, home appliance, etc
Specifications:
Product Name | Programmable Timer |
Model No. | CN101A |
Rated Control Voltage | DC 12V |
Contact Capacity | 16A(8)A, 250V AC |
Hysteresis | <=2 sec/day(25°C) |
ON/OFF Operation | 17 ON/OFF |
Power Consumption | 7.5VA(max.) |
Display | LCD |
Minimum Interval | 1 minute |
Switching Contact | 1 changeover switch |
Ambient Temperature | -10~+40°C |
Ambient Humidity | 35-85%RH |
Mounting Hole Diameter | 3mm / 0.12" |
Overall Size(Approx.) | 62 x 60 x 33mm / 2.4" x 2.36" x 1.3"(L*W*H) |
Material | Plastic, Electronic Parts |
Net Weight | 68g |
Package Content |
1 x Programmable Timer 1 x Manual |
