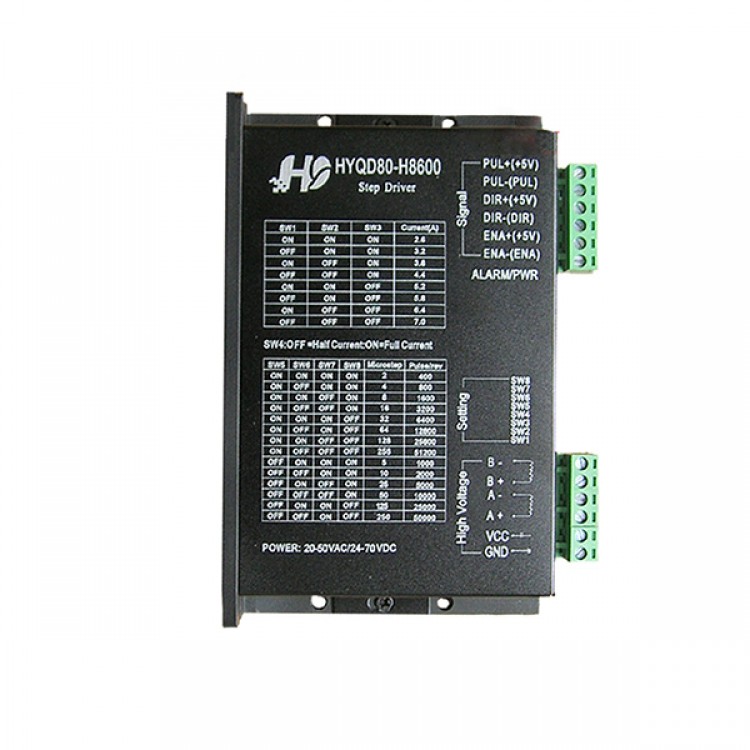

CNC 86 Stepper Motor Driver 7A Output 256 Subdivision 70V High Voltage Motor Driver CNC Milling
Description:
- This driver uses the discrete component structure,2 pahse,and 4 wire,6 wire,8 wire all compatible
- Suitable for 57 .86 series CNC stepper motor ,7A or lower stepper motor
Features:
- The input signal light isolation
- Bipolar constant current chopping mode
- Working voltage:DC24-70V/AC20V-50V
- Max driver current:7A/phase
- Adjustable output current dial the code switch
- Input signal TTL compatible, acceptable difference signal input at the same time
- Resting automatically into half a flow mode, reduce drive and electric heating
- Precision segment:2,4,8,16,32,64,128,256. 5,10,25,50,125,250
- High reliability: after a long period of testing, to ensure the stability of power device choice allows sufficient margin
Package list:
- 1 x CNC 86 Stepper Motor Driver 7A Output 256 Subdivision 70V High Voltage Motor Driver
