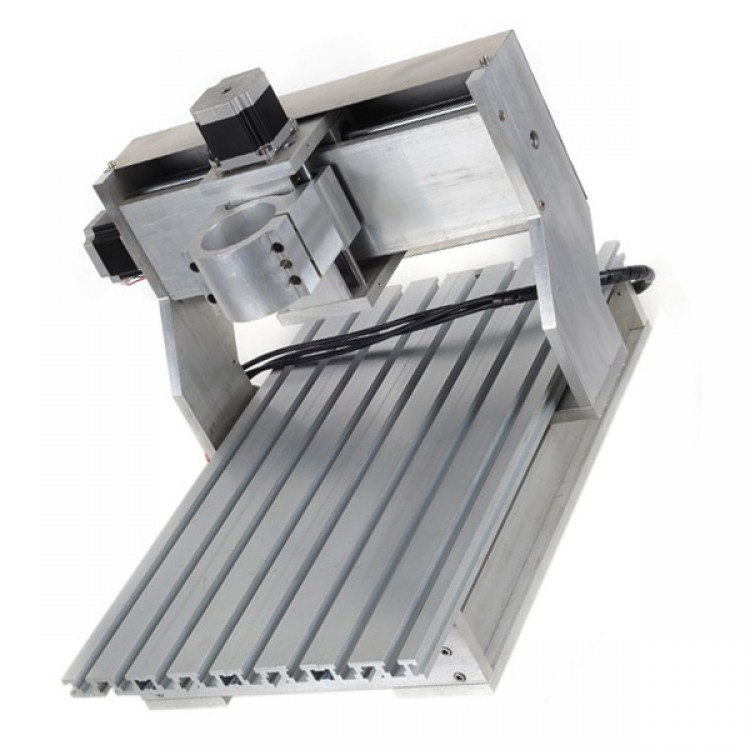

CNC DIY 3025 Router Engraver Drulling Milling Machine with Power Supply + Controller

Our free shipping covers items up to 2kg.  As this item is 15.9kg, and can't be split into smaller packages, we're unable to offer free shipping on this item.
Please contact our customer service (
thanksbuyer@yahoo.com) for a shipping quotation on this item. Thank you!


CNC Machine Specifications:

Effective Traveling Range 250(X)*300(Y)*55(Z)mm
Machine Dimension 420(X)*470(Y)*400(Z)mm
Working Table 320(X)*420(Y)*40(Z) mm
Frame Material  Aluminum Alloy 6061/6063
Driving Core X:  1610 ball screws
  Y:  1610 ball screws
  Z:  1002 ball screws
Sliding Core X: Dia. 16mm
  Y: Dia. 16mm
  Z: Dia. 10mm
Limit Switch X, Y, Z  (2 switch per axis)
Stepping Motor 57 2 phase 3A 1.8 Degree (Brand New)
Spindle Motor Not include
Principal Axis Collet ER11 / 3.175mm
Repeatability  0.05mm
Max No Loading speed (X, Y, Z) 2800mm/min
Carving Code G code/TAB files/nc file/NCC files
PC connection Parallel Port
OS Win2000 XP (Support Mach2 Mach3)
Carving Speed Depend on material
Weight 25KG



CNC Driver Specifications:

Electrical properties (ambient temperature Tj = 25 ℃ pm):
Input Power 12-36V DC power supply
Stepper motor drive current 1.5A - 3A/phase
Drive type Double-pole constant flow PWM actuation output
Compatible Stepper motors 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Dimensions 18 * 14 * 4 cm (L*W*H)



First Installation in 30 minutes:
- Assembling CNC (Separated to 2 part for shipping,  just screw up 4 screws then can be OK) and locating the CNC machine on stable  desk.
- Make sure that your computer has a on-board  parallel port output.
- Install control software and Drive such as the  MACH 3 or EMC2 (You can search easy in Google)
- Connect the X, Y, Z and Limit Switch socket from  machine to CNC controller, connect power cord (We  have already set the right voltage according your  country).  Connect parallel port from
- Follow our instruction on the MACH3 setting.

Package included:
- 1 x 3025 CNC machine
- 1 x 3 axis CNC driver
- 1 x 24V 15A power supply
