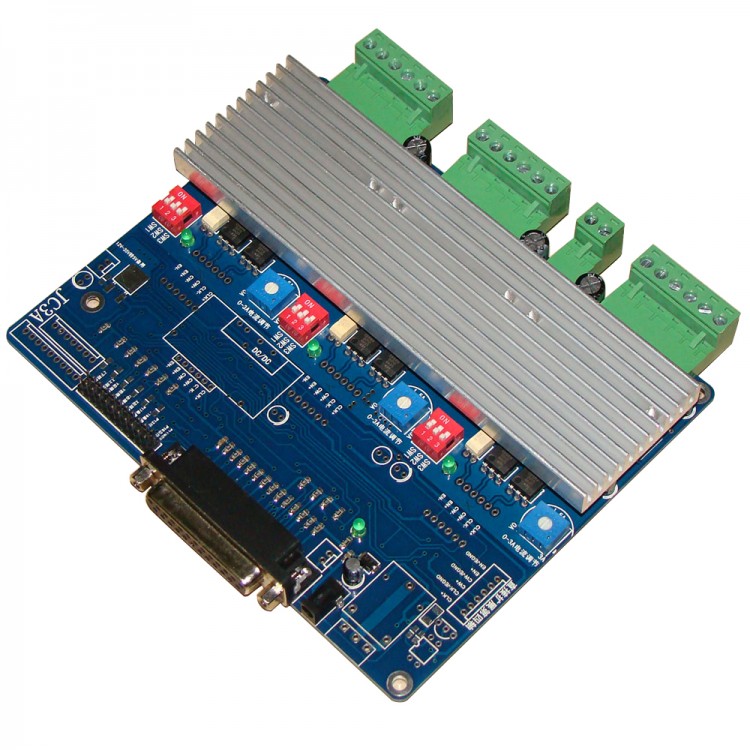

CNC Engraving Machine 3-Axis Step Motor Driver Control Board Key Board JC3A with Radiator for Mach 2 3 KCAM EMC

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.73
  • Price in reward points: 397 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.94 $38.14 $36.95 $35.36 Contact US
Quantity:

CNC Engraving Machine 3-Axis Step Motor Driver Control Board Key Board JC3A with Radiator for Mach 2 3 KCAM EMC

Description:

- Working voltage DC 10V-40V. DC24V/10A power supply is recommended.
- For mach2/mach3 /emc/ /KCAM
- Output standard 3-axis drive, 4 axis port and emergency stop port
- The control part and driving part of the high-speed optocoupler isolation. Prevent mutual interference
- The driver board with a large number of 74HC series chip amplifying and shaping of parallel signal, the output level of stable performance improvement
- The stepping motor is driven by the original TB6560 chip, DMOS internal double H bridge (FET).
- Rated maximum output: 3A,40V, low output impedance, the source 0.5 ohm,  receiver port 0.4ohm
- Suitable for42, 86, 57 2 phase 5tvl or 6tvl/4 phase 5tvl or 6 tvl within 0.5-3A step motor, not for over 3A  step motor
- Automatic half flow attenuation.
- Subdivision: full step, half step, 1/8 step, 1/8step, maximum 8subdivisio

Package included:
- 1 x Step Motor Control Driver board
