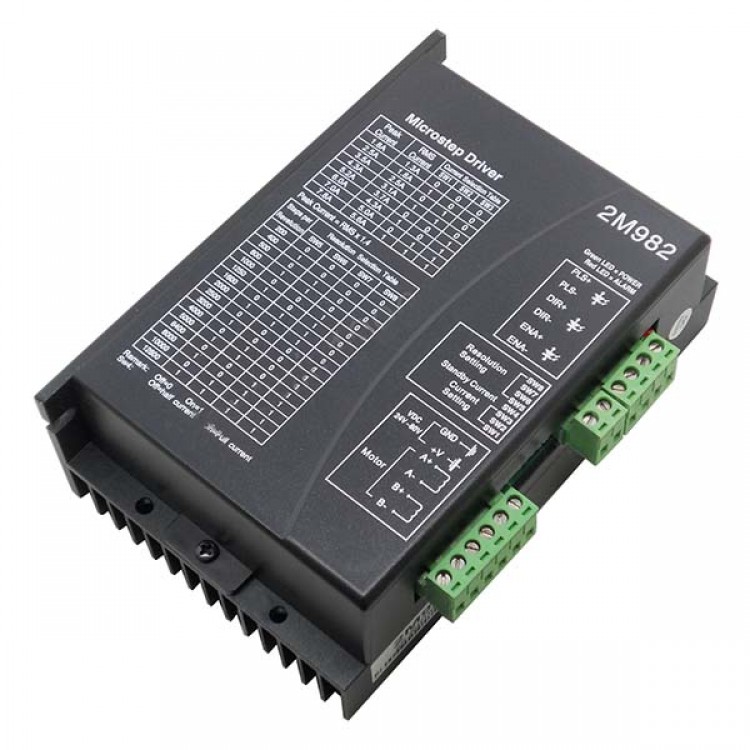

CNC Micro Stepper Motor Driver 2M982 AC 24~80V 7.8A For 57 86 2-phase Hybrid Stepping Motors

Description:
- The 2M982 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase hybrid stepping motors.

- Suitable for a wide range of stepping motors, from NEMA 23/34/42. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.



Features:
- Supply voltage :24~80V DC
- Suitable for 2-phase stepper motors
- High performance, Cost-effective
- Output current: 7.8A (Peak current )
- Speed  self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency: Max 200 KHz
- Optically isolated input and TTL compatible
- Automatic idle-current reduction
-15 selectable resolutions, MAX 12,800 steps/rev
- PLS 、DIR (CW/CCW) 、ENA  mode
- Undervoltage, Shortvoltage, overvoltage, overcurrent protections



Parameters

2M982

Min

Typical

Max

Unit

Output current(A)

1.3

-

7.8

A

Supply voltage(V)

24

48

80

VDC

Pulse input frequency

-

-

200

KHZ

Pulse Low Level Time

2.5

-

-

us



Notice:  when Vcc=5V,    R=0;

               when Vcc=12V,   R=1K,  > 1/8W;

   when Vcc=24V,   R=2K; >  1/8W.



Current Settings:

Peak Current

RMS Current

SW1

SW2

SW3

1.8A

1.3A

1

1

1

2.5A

1.8A

0

1

1

3.5A

2.5A

1

0

1

4.3A

3.1A

0

0

1

5.2A

3.7A

1

1

0

6.0A

4.3A

0

1

0

7.0A

5.0A

1

0

0

7.8A

5.6A

0

0

0

MicroStep Settings:

Steps per

Revelution

SW5

SW6

SW7

SW8

200

0

0

0

0

400

1

0

0

0

500

0

1

0

0

800

1

1

0

0

1000

0

0

1

0

1250

1

0

1

0

1600

0

1

1

0

2000

1

1

1

0

2500

0

0

0

1

3200

1

0

0

1

4000

0

1

0

1

5000

1

1

0

1

6400

0

0

1

1

8000

1

0

1

1

10000

0

1

1

1

12800

1

1

1

1

 (0FF=0.ON=1)

Package Content:
- CNC Stepper Motor Driver 2M982  7.8A Driver
