CNC Stepper Motor Driver controller 2M982 7.8A Driver 2 Phase for CNC Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$59.35
  • Price in reward points: 594 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.16 $56.98 $55.20 $52.82 Contact US
Quantity:

CNC Stepper Motor Driver controller 2M982 7.8A Driver 2 Phase for CNC Engraving Machine

Description

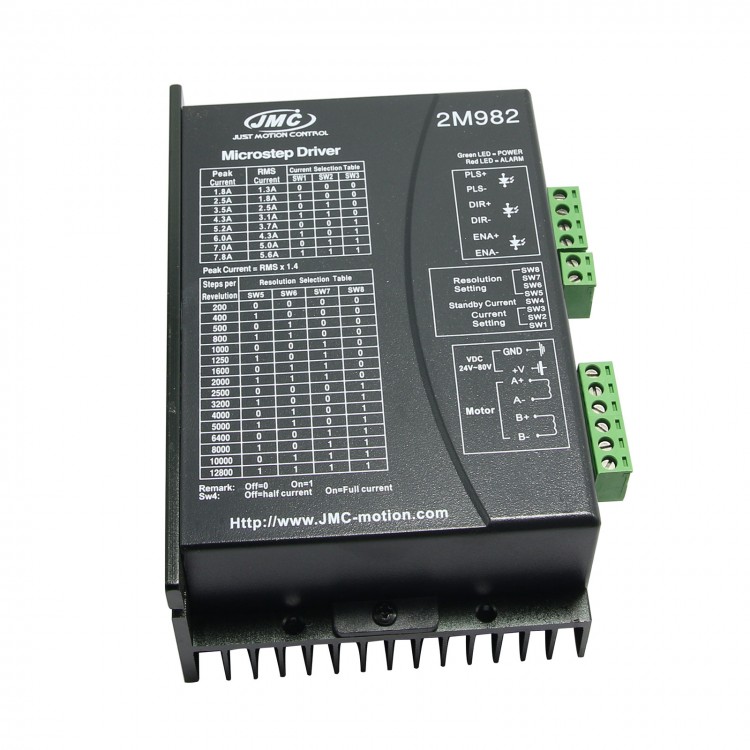

The 2M982 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase hybrid stepping motors.

Suitable for a wide range of stepping motors, from NEMA 23/34/42. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.

Features:
- Supply voltage :24~80V DC
- Suitable for 2-phase stepper motors
- High performance, Cost-effective
- Output current: 7.8A (Peak current )
- Speed  self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency: Max 200 KHz
- Optically isolated input and TTL compatible
- Automatic idle-current reduction
-15 selectable resolutions, MAX 12,800 steps/rev
- PLS 、DIR (CW/CCW) 、ENA  mode
- Undervoltage, Shortvoltage, overvoltage, overcurrent protections

Specifications:



Parameters

2M982

Min

Typical

Max

Unit

Output current(A)

1.3

-

7.8

A

Supply voltage(V)

24

48

80

VDC

Pulse inputfrequency

-

-

200

KHZ

Pulse Low Level Time

2.5

-

-

us
