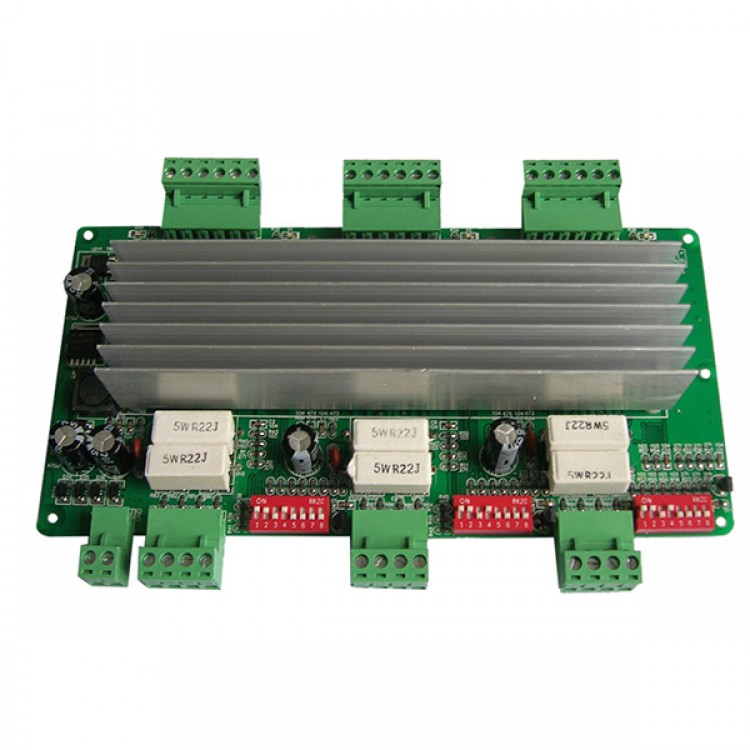

CNC THB6064 3 Axis Stepper Motor Driver Module for 57 CNC Carving Machine
Description:
- HYQD33 - H0057 is a professional of triaxial two-phase stepper motor drive, can achieve positive &negative control, with functions of overheating and over-current protection, overheating over-current red leds alarm. 8 through three dial the code switch selection control gear (2, 8, 10, 16, 20, 32, 40, 64), 8 through three dial the code switch selection file current control (0.5 A, 1 A, 1.5 A, 2 A, 2.5 A, 3 A, 3.5 A, 4 A). Suitable for drive, 86, 57, 42 two phase, four phase hybrid stepping motor. Drive motor with low noise, little vibration, the characteristics of stable operation.
Features
- Power supply with anti-reverse function
- Current selected by DIP switch
- Using a high-speed optocoupler isolation
- High integration and high reliability
- The ability of anti-high-frequency interference
- Maximum pressure DC 50V
- Eight kinds subdivision adjustable
- Automatic semi-flow
- With over current /Over voltage protection function
