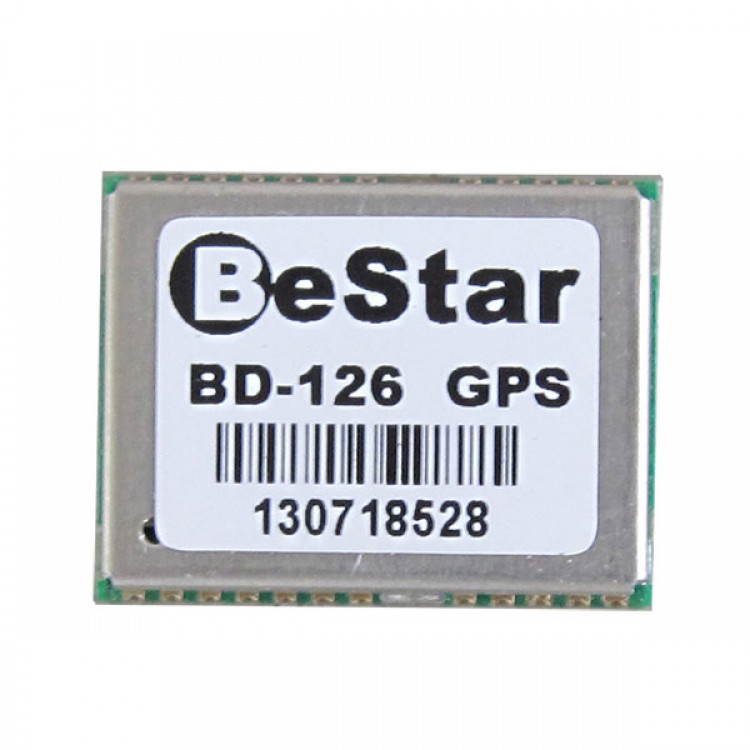

• Compass II (BD2) + GPS Positioning and Navigation System High Precision Module BD-126 Mini Drift

Compass II (BD2) + GPS Positioning and Navigation System High Precision Module BD-126 Mini Drift

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.13
  • Price in reward points: 171 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.79 $16.44 $15.93 $15.25 Contact US
Quantity:

Compass II (BD2) + GPS Positioning and Navigation System High Precision Module BD-126 Mini Drift

Advantages:

- Low consumption, 25mA
- High sensitivity: -163dbm
- Size: 16mm*12mm

Parameters:
- Power supply: DC voltage: 2.8V-4.3V, typical: 3.3V
- Consumption: acquisition: 25mA @-130dBm, tracking: 17mA@-130dBm, standby: 0.5mA@VCC=3.3V
- Receiving format: beidou BI 1561.098MHz    GPS L1 1575.42MHz   C/A Code, 99 search channels, 33 tracking channels
- Receiving sensitivity: cold start:  -148dBm, acquisition: -160dBm, tracking: -163dBm
- Positionig time: cold start: 31S -130dBm,   warm start: :30S  -130dBm      hot start:  -130dBm
- Level positioning precision: <2.5m CEP
- Output frequency: up to 10Hz, 1Hz by default
- 1PPS precision: <15ns,  pulse width: 100ms
- Acceleration precision: 0.1m/s
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART interface: UART port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps, default 9600bps
- UART is used for NMEA output
- Working temp: -40---85defree
- Storage temp: -45---125degree
- Weight: <2g
