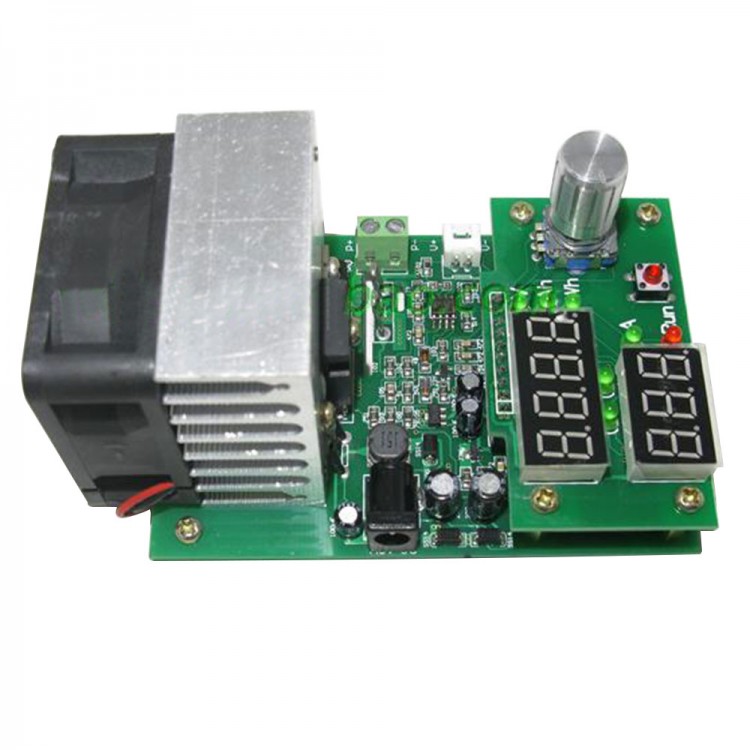

Constant Current Electronic Load Battery Discharge Capacity Tester 9.99A 60W 30V

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.24
  • Price in reward points: 222 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.80 $21.35 $20.68 $19.79 Contact US
Quantity:

Constant Current Electronic Load Battery Discharge Capacity Tester 9.99A 60W 30V

 Specification:
- Operating mode: single mode constant current(CC)
- Discharge current:0.20-9.99A stepper 0.1A or 0.01A
- Discharge current maximum error: 0.7%-0.01A
- The maximum capacity test error:0.5A 2.5%,2A 1.5%,5A and above 1.2%
- Offline(termination) Voltage Range:1.0-23.0V stepping 1V or 0.1V
- Discharge voltage:1.00-30.00V
- The maximum voltage measurement error:1%±0.02V
- Mximum power:60W super power automatically limits the maximum current(for example, up to 60W when it can open 9.99A 6V and 20V maximum at - the only open 3.00A)
- Highest battery test statistic: 999.9Ah, achieve value stop testing
- Board size: 60W 100mm*70mm*57mm(fan promient board about 12mm)
- Positioning hole locations: 60mm*88mm diameter 3.2mm 5mm pedestal alredy installed
- Fan cocntrol:intelligent fan control

Package included:
- 1*60W Electronic Load

Note: The default not inclcuded power adapter and other test tools
