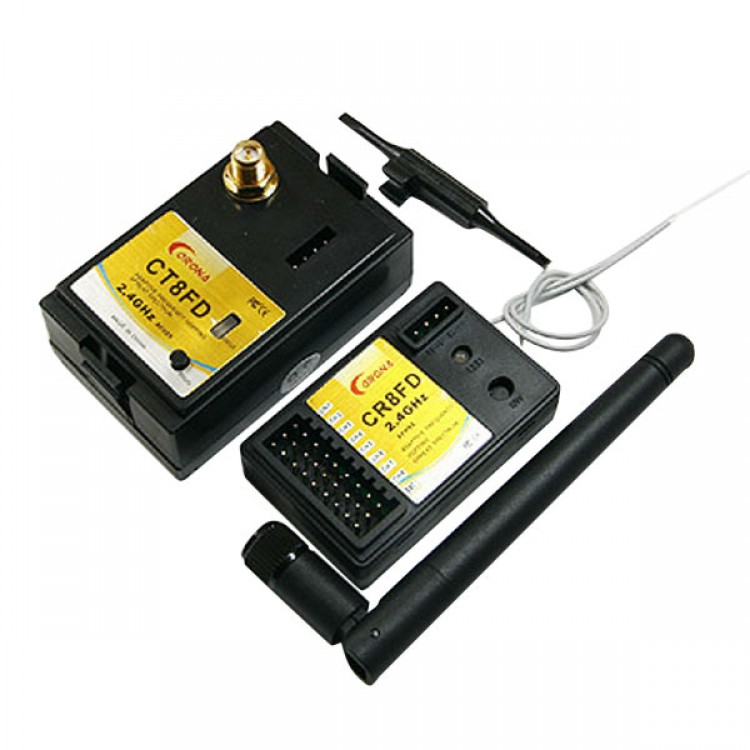

CORONA 8-channel 2.4G CT8FD+CR8FT Two-way RF Module & RX System for Futaba
- Two-way radio system add the new dimension of data acquisition from the target model, the receiver can send back a data stream containing information such as packet error rate, battery information, GPS data for example.
- AFHSS technology (Adaptive Frequency Hopping Spread Spectrum) provides high interference rejection even in an interference rich environment .
-  Quick and precise response.
- Low power consumption.
- Fail safe is available on the receiver.
- Easy range check with alarm beep.
- Dual antennas diversity.
- Packet error rate of receiver delivery to Transmitter.
- Good compatibility between all two-way Transmitter modules and receiver's
- Alarm on events of receiver (poor reception or low battery voltage Note – this requires an extension display module / alarm unit)
- Extended Features (requires an transmitter based extension module “dashboard” to display the communication data from the receiver)
- Voltage / Amp draw / temperature status of the model delivery to Transmitter display module.
- RPM of the motor on the model delivery to Transmitter.
- GPS data (include Longitude, Latitude, height, speed, etc) on the model.

- Transmitter modules: CT8FD
- Compatible with following transmitters:
- Futaba 3PK, 3PM, 7U, 8U, 8J, 9C, 9Z, 10C, FN SERIES, T10C, FC-18, FC-28, FF7
- Hitec: Optic 6, Eclipse 7, Prism 7
- WFLY: WFT09, WFT08
- Receiver module: CR8FD, 8 channel
- Compatible with any Corona two-way transmitter module
- Electrical Specifications:
- Transmitter module:
- Operation Voltage Range:6~13V
- Operating Current:<=50mA@10V
- RF output power: <=100mW
- Receiver module:
- Operation Voltage Range:4.8~6V
- Operating Current:<=50mA@5V
- Sensitivity: -100dBm
- Resolution:10bit
Package including:
