| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $9.72 | $9.52 | $9.23 | $8.83 | Contact US |

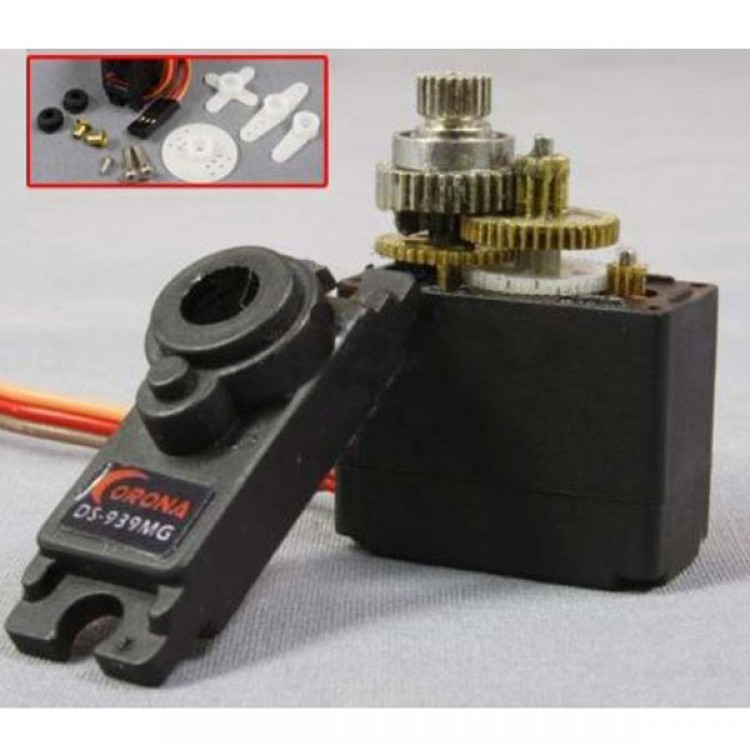

Corona DS-939MG Metal Gear Digital Servo 12.5g/ 2.5kg-cm Torque
This is Corona DS-939MG 12.5g ≧2.5 Kgf.cm Metal Gear Digital Servo. With the built-in PC board, it can much more accurate and precision to make any response according to your radio. It comes with Direct Drive Ball bearing MR85 Metal Gear and servo arms, gears and screws also included.
Specifications:
| Voltagem operacional : | 4.8V DC ~6.0V DC |
| Corrente: | 200mA/60º |
| Velocidade : | 0.14sec/60º |
| Torque : | 2.5kg.cm |
| Dead band : | ≤3uSec |
| Operating Travel : | 40º one side pulse traveling 400μs |
| Dimensões: | 22,5 x 11,5 x 24,6 (mm) |
| Peso: | 12,5g |
| Fabricante / Modelo: | Corona / DS-939MG |
