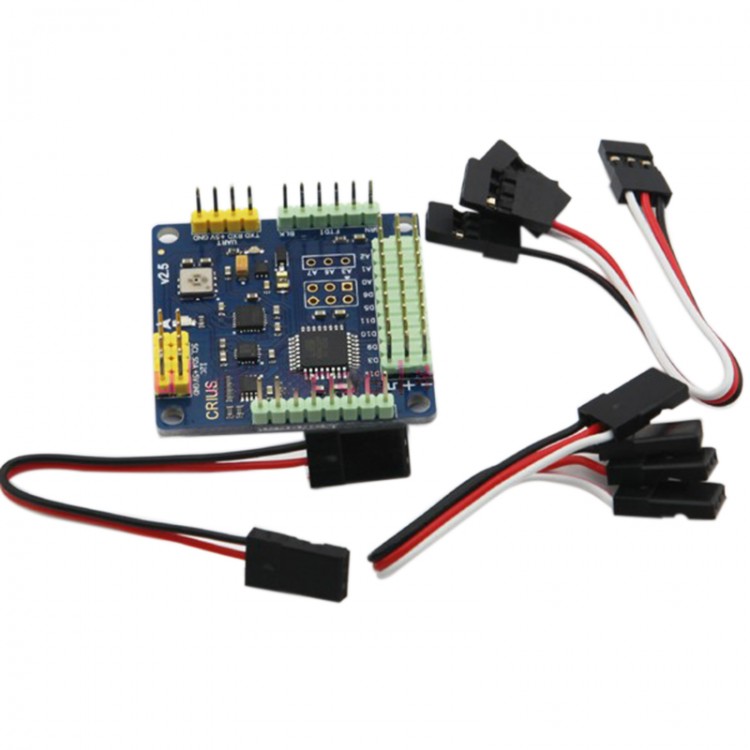

CRIUS MultiWii Standard Edition Flight Controller MWC SE V2.5 Supported 2-Axis for Multicopter

Features:
- Small size,35x35mm mounting holes
- 6 input channels for standard receiver and PPM SUM receiver
- Up to 8-axis motor output
- 2 servos output for PITCH and ROLL gimbal system
- A servos output to trigger a camera button
- FTDI/UART TTL socket for debug, upload firmware or LCD display
- I2C socket for extend sensor,I2C LCD/OLED display or  I2c-GPS NAV board
- Separate 3.3V and 5V LDO voltage regulator
- ATMega 328P Microcontroller
- MPU6050 6 axis gyro/accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- BMP085 digital pressure sensor
- On board logic level converter

Parameters:
- Dimension: 40mmX40mm
- Height: 11.6mm
- Weight: 9.6g
- Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)
- Hole diameter: 3mm

Package content:
- SE FC x 1
- 3Pin to 1Pinx3 cable 100mm x 2
- 3Pin to 3Pin cable 100mm x 1
