CRIUS MWC Multiwii Blutooth Module Patameter Configurator Module/Adapter

CRIUS MWC Multiwii Blutooth Module Patameter Configurator Module/Adapter
Description:

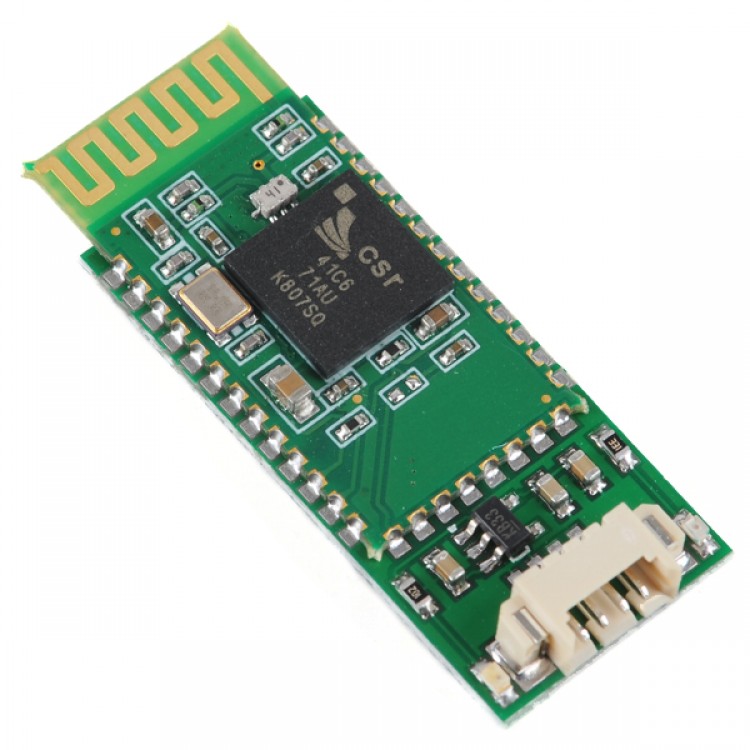

- CRIUS Blutooth Module adopts UK's CSR bluetooth slave module,with high stability and stable signal
- with regulated power supply, Can connect to UART TTL port of MWC directly, easy to adjust parameters

Function:
- Read and adjust all PID parameters
- Read and adjust AUX1/AUX2 Switch setting
- Monitor remote controller signal and output control signal of flight controller board
- Monitor signal between GPS output signal and Gyro,accelaration meter,pressure meter and other sensors
- Calibrate magnetic  resistance and accelaration sensor
- Read and save MWC parameter Via cellphone
- Support screenshot

Description:
- this bluetooth module compatible with all MWC flight controller,328P flight control Board connect UART Serial port and Maga Flight control Board connect Serial 0 Port
- Support transparent data transfer function,also can be used with other devices

LED State indicator:
- Green:power supply indicator,continuous lighting when power on
- Red:flashing indicates no connection,continuous lighting indicates connect success

Package included:
- Blutooth module×1
- 4 pin connect cable ×1(200mm)
