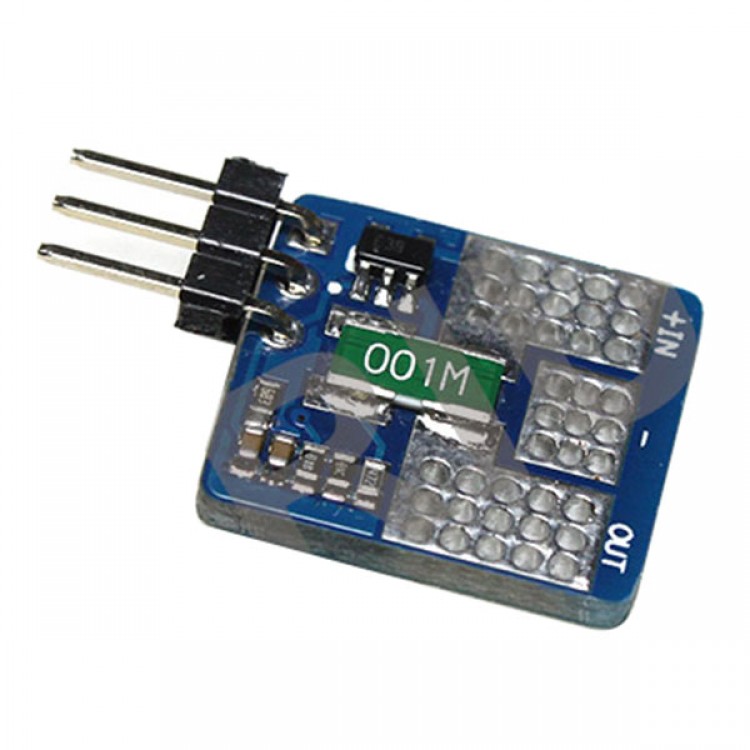

CRIUS V/ I Sensor APM Flight Control Voltage & Current Sensors 50V/90A Attopilot

Availability: Out Of Stock

  • Price:$13.98
  • Price in reward points: 140 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.70 $13.42 $13.00 $12.44 Contact US
Quantity:

CRIUS V/ I Sensor APM Flight Control Voltage & Current Sensors 50V/90A Attopilot

Description:

- CRIUS V & I Sensor is a practical voltage and current sensor module , the body 's way of using the divider resistors as well as through a dedicated chip + alloy resistance test equipment current and output analog voltage to the flight control , flight control ground station or the OSD can shows the current in the voltage and current values . 100% identical sensors and AttopPilot Voltage & Current Sense configuration , with 0.1% precision resistor divider and 1% accuracy 4W alloy resistance , as far as possible to ensure the accuracy of measurement.
- Sensors for the general accessories that can be used AIOP / APM / MPNG type and other flight control , in APM Planner inside select Attopilot 50V/90A specifications without the need of calibration.
- For MPNG / APM instructions Wiki:
- http://code.google.com/p/arducopter/wiki/AC2_Current?wl=zh-Hant
- Please refer to the section on AttoPilot sensor .
- Three-wire interface , GND / voltage / current. Voltage output connector A1, current output connection A2.

hardware features :
- Maximum measuring voltage : 51.8V
- Maximum measuring current : 89.4A
- Ultra-low offset current
-The analog output corresponding to a 3.3V ADC specifications
- Self-powered , no separate power supply
- Ultra-small size , easy to install
- Size : 15mm × 17mm ( excluding cable and plug )
- Weight : 4g
- Cable: DuPont 3Pin-3Pin 100mm × 1
             Silicone wire 12AWG × 50mm × 4
- Other accessories : genuine XT60 Plug / T Plug / shrink tube

- not provide additional technical support.
- CKD does not provide welding.

Package Included: (All items as shown on picture)
- CRIUS V / I Sensor APM flight control voltage and current sensors 50V/90A Attopilot
