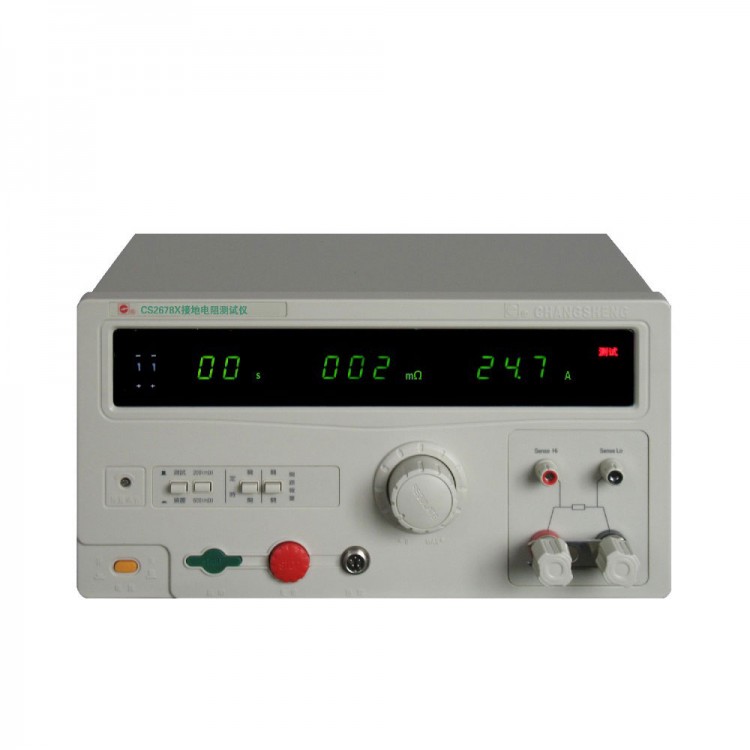

CS2678X Resistance Tester 0-600mOhm Meter Ohmmeter Ammeter 5-30A Current Volatge Testing

Availability: In stock, usually dispatched in 1 business day

  • Price:$633.72
  • Price in reward points: 6337 Reward Points: 63
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $621.05 $608.37 $589.36 $564.01 Contact US
Quantity:

CS2678X Resistance Tester 0-600mOhm Meter Ohmmeter Ammeter 5-30A Current Volatge Testing

Specification:

- Output current range: 5.0-30A
- Maximum output current: 30A
- Resistance up limit value: 10-200(32A) 200-600 (10A)
- Output waveform: Sine wave
- PLC interface: Yes
- Weight: About 11kg
- Dimension: 315*165*250 mm W*H*L

Ammeter
- Testing range: 5-30A
- Resolution: 0.1A
- Accuracy: -+ (5% of reading +5 )
- Range: 0-600mOhm

Voltmeter
- Accuracy:
  200mOHM <(5% of reading +2mOhm )
  600mOHM <(5% of reading  +5 )
- Resolution:200mOhm 0.1mOhm; 600mOhm 1mOhm

Timer:
- Range: 0-99S
- Resolution: -+5%
- Accuracy: -+5%

Package included:
- 1 x Resistance Tester
- 1 x Power cable
- 1 x CS26011-1
- 1 x CS26011-2
