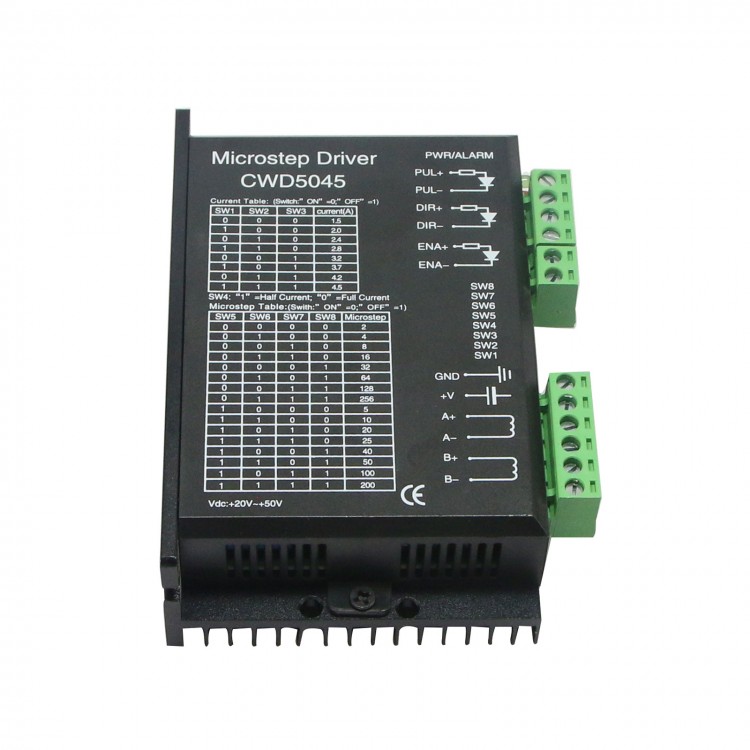

CWD5045 Stepper Motor Driver CNC Stepping Motor Driver Board 50V 4.5A for 57/86 Motor

CWD5045 Stepper Motor Driver CNC Stepping Motor Driver Board 50V 4.5A for 57/86 Motor

CWD5045 high microstep stepper motor driver

• DC power input type:24V~50VDC
• Output current: 1.3,1.8,2.3,2.7,3.2,3.7,4.2,4.5A
• Mircostepping: 1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256
•                            1/5,1/10,1/25,1/50,1/125,1/250
• Protect form : Overheated protect, lock automatic half current ,error connect protect
• Working environment: Temperature-15-40deg  Humidity<90%
• It is fit for NEMA17-23 two and four phase stepper motors whose current is small than 4.5A,it also can fit for small length NEMA34 two and four phase stepper motors.
