CYCLONE IV EP4CE15 ALTERA FPGA Develop Board NIOS II

Availability: Out Of Stock

  • Price:$98.36
  • Price in reward points: 984 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $96.39 $94.43 $91.47 $87.54 Contact US
Quantity:
Buy it now Add cart

You might like

ALTERA FPGA NIOS CYCLONE IV EP4CE15 Development Board +USB BLASTER+Power Adapter+ E082

ALTERA FPGA NIOS CYCLONE IV EP4CE15 Development Board +USB BLASTER+Power Adapter+ E082

$163.90

(0)
CYCLONE IV EP4CE15 ALTERA FPGA Develop Board NIOS II E082

CYCLONE IV EP4CE15 ALTERA FPGA Develop Board NIOS II E082

$178.69

(0)
Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$173.48

(0)
ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$166.69

(0)
Altera CycloneII EP2C8Q208 NIOS II SOPC FPGA Main Board

Altera CycloneII EP2C8Q208 NIOS II SOPC FPGA Main Board

$78.77

(0)
EP2C8Q208 Altera Cyclone NIOS II FPGA Development Board

EP2C8Q208 Altera Cyclone NIOS II FPGA Development Board

$75.99

(0)
PL-USB2-BLASTER USB Blaster II FPGA Download Cable USB Blaster Programmer USB Programming Cable

PL-USB2-BLASTER USB Blaster II FPGA Download Cable USB Blaster Programmer USB Programming Cable

$25.59

(0)
Open Source SDR Radio Platform Unassembled SDR Radio Board For LimeSDR + Shell + USB3.0 Data Cable

Open Source SDR Radio Platform Unassembled SDR Radio Board For LimeSDR + Shell + USB3.0 Data Cable

$994.43

(0)

CYCLONE IV EP4CE15 ALTERA FPGA Develop Board NIOS II

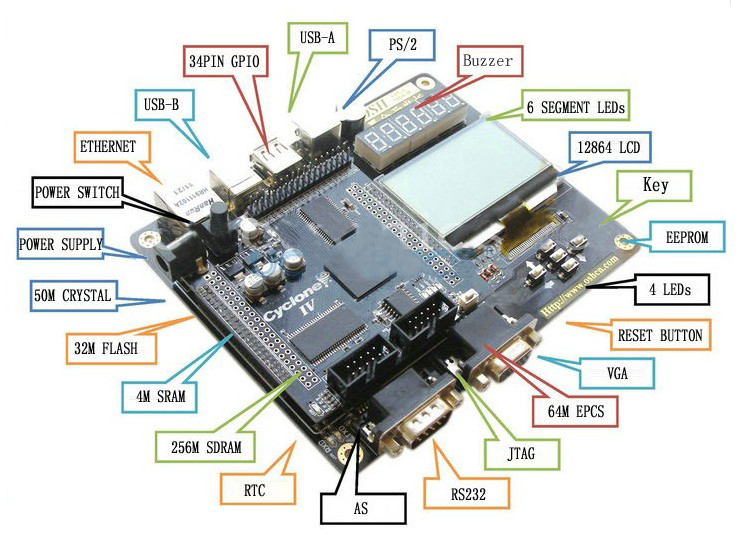

Product description:
- FPGA: EP4CE15F17C8N
- SDRAM: 256Mbit(16M*16bit)
- SRAM: 4Mbit(256K*16bit)
- Serial FLASH: 64Mbit(EPCS64)
- Parallel FLASH: 32Mbit(4M*8bit)
- Crystal: 50MHZ /40MHZ
- I/O Number: 110
- Download/debug port: AS and JTAG
- Dimension: 76*76mm
- Mother Board configuration:Ethernet Function, with ENC28J60
- USB Function, with CH376
- On-board 128 x 64 dot matrix LCD, with ST7565P
- Real-time clock (RTC), with DS1302
- EEPROM configuration with 24LC04
- PS / 2 interface
- RS232 serial interface
- 6 segment LEDs
- VGA port
- Buzzer
- LED lights
- Supply technique support via email.


Package including:
- 1Pcs CYCLONE IV EP4CE15 ALTERA FPGA Develop Board

- 1pcs  5V 2A Power supply
