• Cypress CY8CKIT-059 3.3V-5.5V Development Evaluation Board Module PSoC 5LP Prototyping

Cypress CY8CKIT-059 3.3V-5.5V Development Evaluation Board Module PSoC 5LP Prototyping

Availability: Out Of Stock

  • Price:$17.66
  • Price in reward points: 177 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.31 $16.95 $16.42 $15.72 Contact US
Quantity:

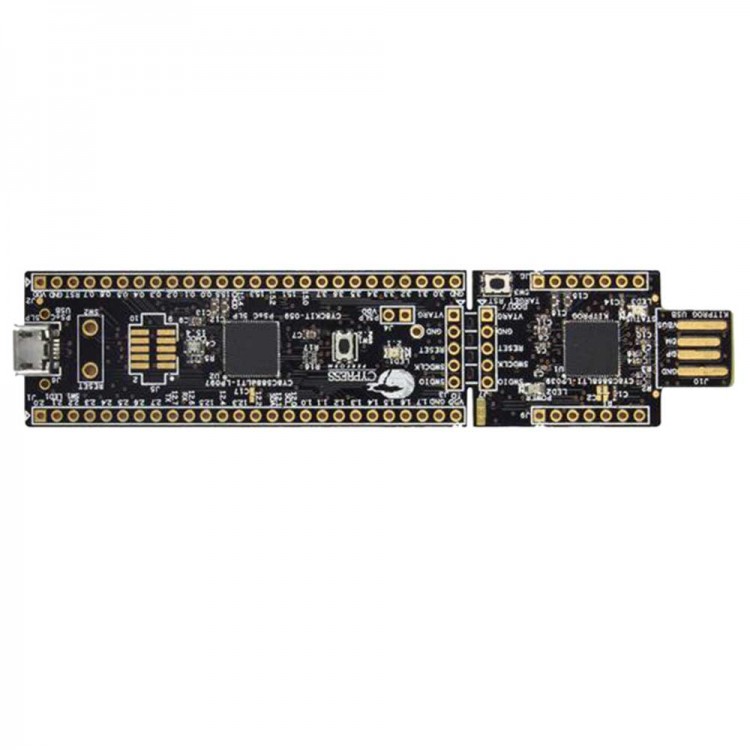

Cypress CY8CKIT-059 3.3V-5.5V Development Evaluation Board Module PSoC 5LP Prototyping

Description:

Cypress CY8CKIT-059 PSoC 5LP supports all I/O of PSoC 5LP. There is micro-USB head, can develop fuu-speed USB2.0 connection capacity. User can seperate the target board drom the USB connector, kitProg programmer and debugger. Built-in Cypress kitProg programmer and debugger. KitProg can program and debug the PSoC 5LP through SWD when using PSoC Creator or PSoC programmer. It can nake bridge connection with USB-I2C interface through USB-UART. Also can visit Micrium μC/probe. This USB board can be collocation with any PSoC 3 and PSoC 4 or PSoC 5LP devices, as a KitProg programmer and debugger. At the same time, it also provides the KitProg firmware used to guide the loading image, and can be used to develop custom applications.

Specification:
- Tool for evaluation: 5LP PSoC
- Core: ARM Cortex M3
- Working power supply voltage: 3.3 to V 5.5 V
- Function: CY8CKIT-059 PSoC 5LP prototyping kit
- Interface type: I2C, UART, USB

Package included:
- 1 x Evaluation Board
