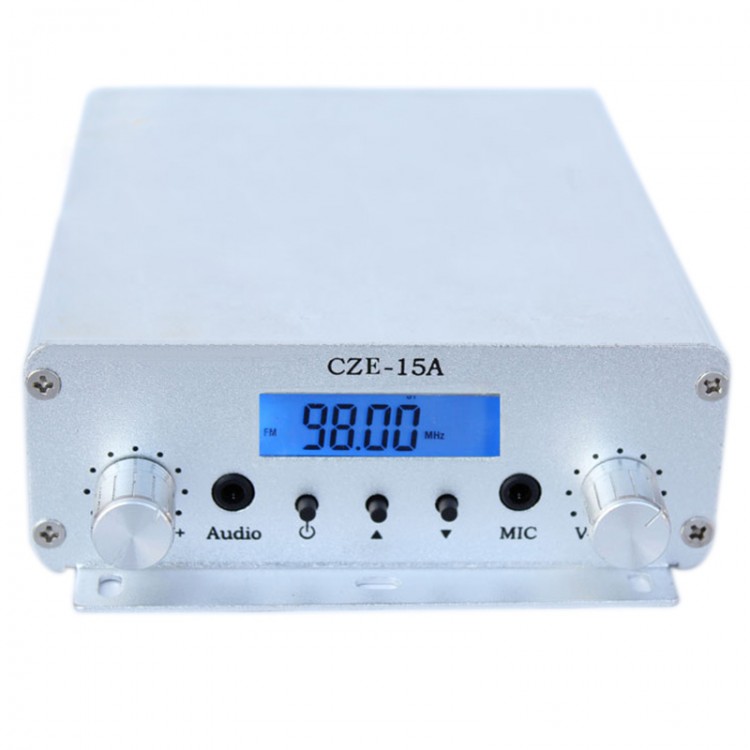

CZE-15A DC 12V 2W/15W Stereo PLL FM Transmitter Broadcast Car Radio Station

CZE-15A DC 12V 2W/15W Stereo PLL FM Transmitter Broadcast Car Radio Station

Description:
This FM stereo transmitter can be used for factories, schools, supermarkets, farms, Office space or create your own radio station.
CZE-15W using advanced modulation system and built-in PLL frequency, audio pre-emphasis, limiter, and low-pass filter circuit.
The Control circuit board design and amplifier design to reduce noise, so sound quality is even better.
Well-shielded, compact structure, small size, generous appearance, plug and play, very easy to use.

Specification:
- Operating Voltage: DC 12V.
- Maximum Operating Current: less than 3A.
- Frequency Range: 87MHz~108MHz.
- Frequency stepping: 100KHz.
- Frequency stabilization mode: PLL.
- Output Power: 2W or 15W.
- Output Impedance: 50 ohm.
- Maximum Deviation: <=±75KHz.
- Audio Frequency Response: 150Hz~15kHz.
- Audio Input Level: 15dbV.
- Audio Input Interface: 3.5mm headphone connector.
- MIC input: 3.5mm headphone connector.
- Stereo Separation: -50db.
- SNR:>= 60db.
- Reference for the distance: About 10Km-18Km (barrier free environment).
- Dimensions: About 190mm (L) x 125mm (W) x 45mm (H)

Note:
- Connect antenna first ,then connect the power supply, otherwise, transmitter will be burned out.
- Select an unused FM station in your area.
- Packing not included power supply and Antenna.
- It only silver color in stock now.
- Brand logo changed CZH to CZE
- No power adapter

Packing included:
- CZE-15A FM Transmitter x1
