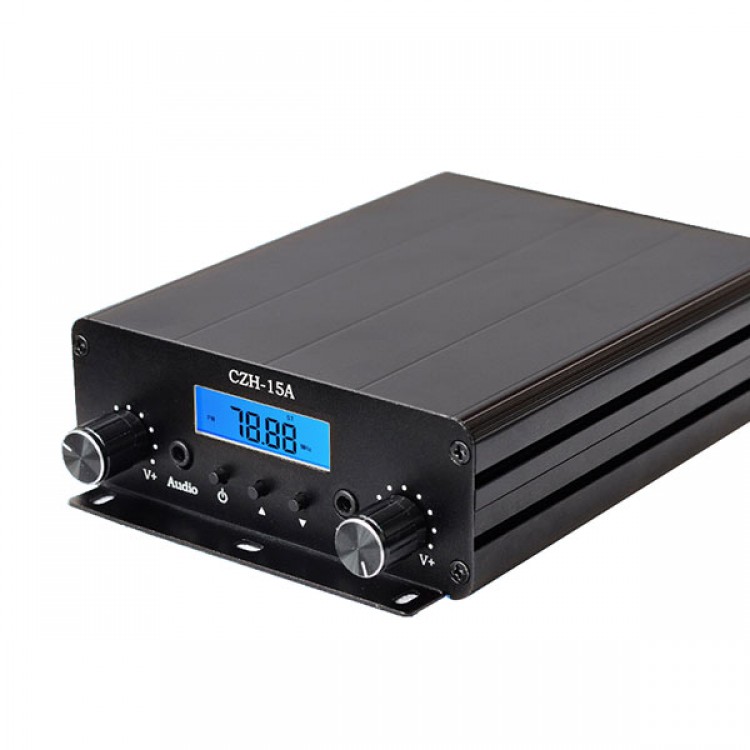

CZH-15A 2W/15W Vehical FM Transmitter Stereo PLL Broadcast Radio Station
Features :
- Production of high-quality aluminum alloy chassis, LCD display frequency, power, volume, size.
- Japan ROHM motherboard for the next-generation integrated NC FM stereo radio transmitter chip, built-in PLL frequency PLL, audio pre-emphasis, limiter and low pass filter circuit. Make sound more sweet.
- Overall shielding good, compact structure, small size, appearance generous.
- Vehical, mobil and home based FM stereo broadcasting
- High quality 40w magnetic suck based vertical antenna
- Come with AC power adapter for home office and car cigarette DC adapter for your mobil vehical.
Specifications:
- Phase Lock Loop (PLL) System
- Easily choose your frequency LCD and buttons
- Freq range :88MHz~108MHz
- Power :15w
- Ripple or harmonic waves: <= -60dB
- Tuning Step : 100khz
- Stability of Frequency: ±5ppm Less than 10ppm ( better system)
- Freq. Response: -55dB(100~5000Hz); -45dB(5000 ~ 15000Hz )
- Audio Input Connector: 3.5mm headphone connector
- Microphone jack;it can be connected wih the microphone
- BNC Type antenna output
- Reduced harmonic ( clean signal )
Package list:
- No include antenna,if you need it,please contact us!
- You need to prepare a power adapter (output 12V/5-6A) and audio cable by youself.
- 1 * CZH-15A Vehical FM Transmitter-Black
