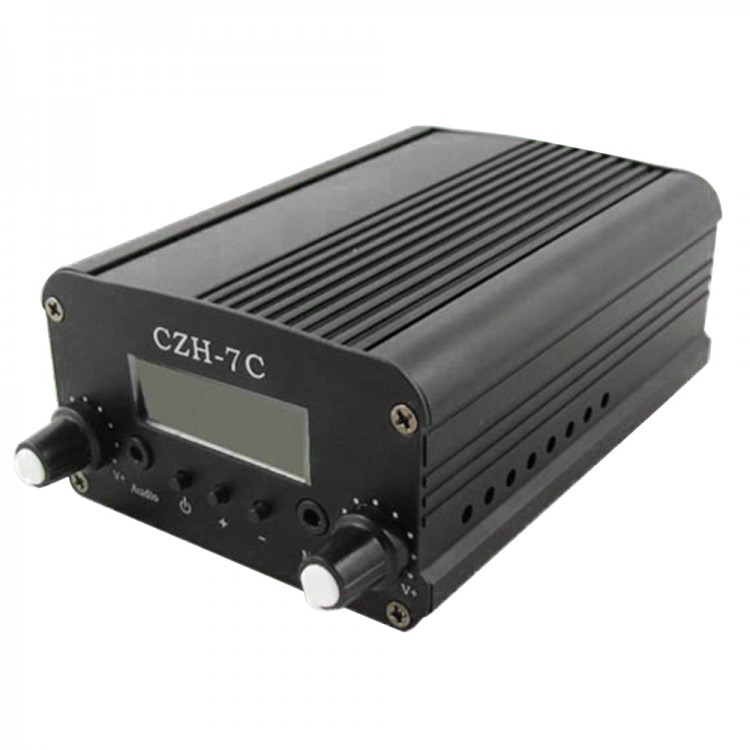

CZH-7C DC9V-15V 7W Stereo LCD Broadcast Radio Station FM Transmitter Wireless Audio System

CZH-7C DC9V-15V 7W Stereo LCD Broadcast Radio Station FM Transmitter Wireless Audio System

Description:
Made of aluminum, with LCD to display frequency.Built-in PLL frequency, audio pre-emphasis, limiter and low pass filter circuit.With microphone and audio input of the amplifier, adjustable input volume.Transmitting power can switch between at 1W and 6W. (Press and hold the power switch button then plug in the power, when the LCD display L or H, then release the power button. By the buttons + and - to switch the transmitter power.)

Features:
- Antenna must be installed BEFORE the FM transmitter switch on
- This appliance is not suitable to use under hot and high humidity surroundings　
- We provided 12V, 3A power supply, it is not suggested to increase the voltage
- Please turn off the appliance under lightening, unless you have lightning protection facilities.
- Avoid locating this item close to GPS transmitter, so as to avoid intervention

Specifications:
- Power supply voltage: DC 9-15V (12V recommended)
- Operating current: Less than 2A
- Frequency range: 76 ~ 108Mhz
- Frequency step: 100kHz
- Frequency stabilization method: PLL
- Frequency stability: ± 10 ppm (-10 ℃ ~ +60℃ )
- Frequency deviation: Less than ± 75kHz (100%)
- Working method: Continuous
- Clutter and Harmonic: Less than -60dB
- SNR: More than 60dB
- Stereo channels crosstalk: -50dB
- Audio frequency response: 20 to 15000Hz
- Audio distortion: Less than 2%
- Modulation: 15%
- Input level:-15dBV (adjustable)
- RF output impedance: 50 Ohm
- RF output power: 1W/7W (Power can be switched)
- Reference range: 5 Km - 10Km (A barrier-free environment)
- Unit dimensions: 160mm(L) * 95mm(W) * 54mm(H)
- Color: Black or Sliver

Package included:
- 1 x 7Watt Stereo LCD Broadcast Radio Station FM transmitter
- 1 x Antenna
