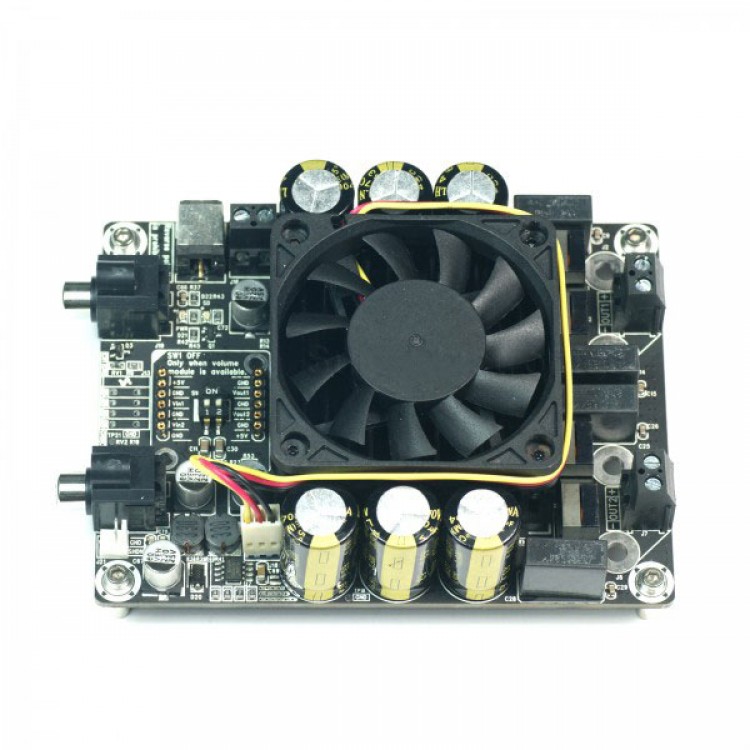

D Type Digital Amplifier Large Power Stereo Dual Channel 2x300W TAS5630
Description:
- Weight: 290g
- D type audio amplifier board
- Size: 129.52mm (L)×91.44mm (W)×45.72mm (H)±2mm
- Gaining: 29.8dB
- Power supply range: typical 48V, 25-52V
- Input sensitivity: 150mV(RMS)
- Input resistance: 15K ohm
- Output power: 4ohm THD+N=10% 300W 48V, 4ohm THD+N=1% 240W 48V
- Efficiency: output 2X300W@4ohm, power supply 48V>90%
- Min loading: 3.5ohm
- Frequency range: +/-3dB 20Hz 20KHz
- Operation temp range: 0-50degree
- Storage temp range: -20---85degree
