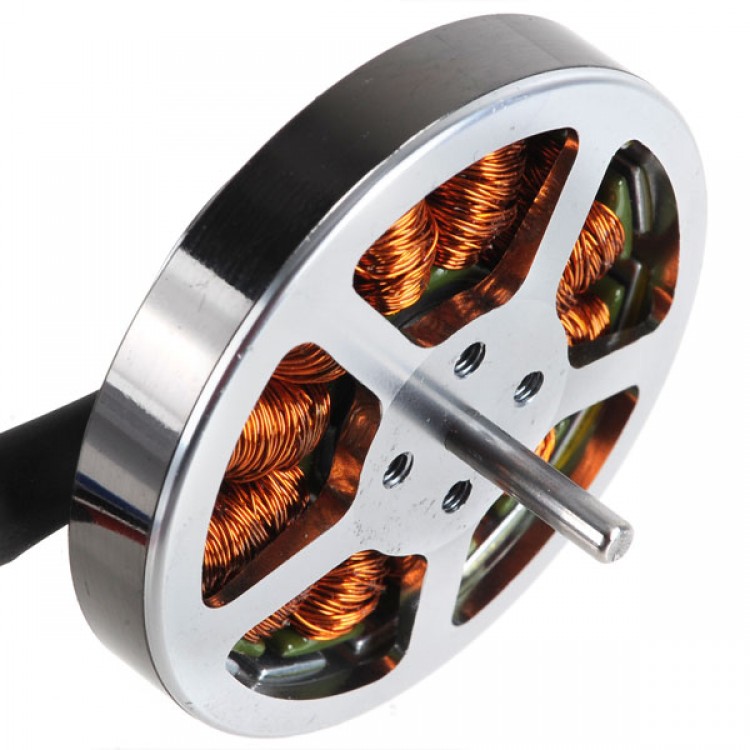

D5010-14 Disk Type Brushless Motor with Mounting for Quadcopter and Multicopter

- Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
- Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
- Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
- High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.
- High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on thismotor 5010.
- High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
- High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched orshorting out

Specfications:
- Model No.: D5010-14
- Motor size: Ф50*10mm
- Shaft size: Ф3.17mm
- Weight: 90g
- KV(rpm/v): 360
- Battery: 2-5Li-Po
- ESC: 10A
- Cable 40cm
