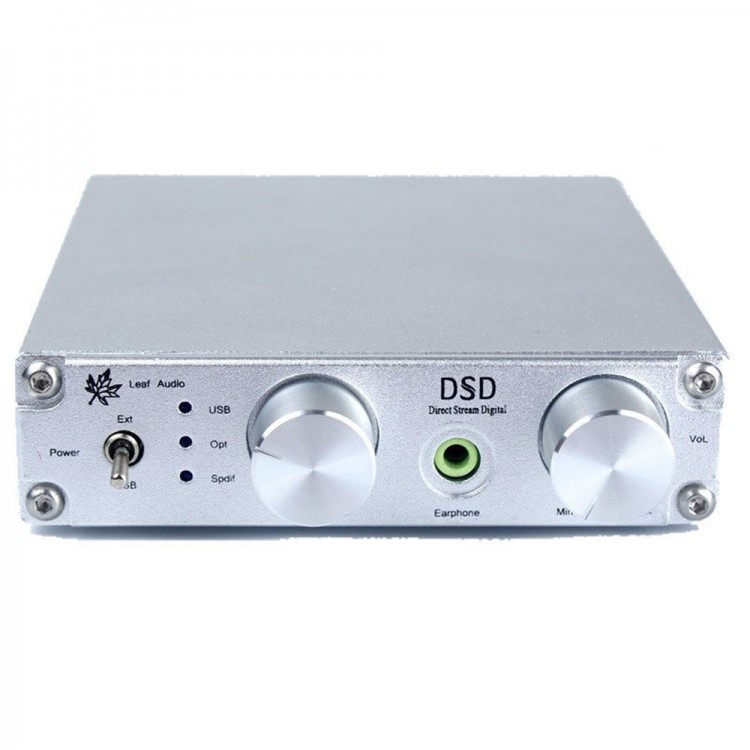

DAC Audio Decoder USB Coaxial Optical HIFI Sound Card Support PCM 384K DSD256

Availability: In stock, usually dispatched in 1 business day

  • Price:$107.81
  • Price in reward points: 1078 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $105.65 $103.50 $100.26 $95.95 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

DAC Audio Decoder USB Coaxial Optical HIFI Sound Card Support PCM 384K DSD256

Specifications:

- DAC chip: DSD1796
- op amp opa1652
- Overall dimensions: 110*98*25mm
- Weight: 300 grams
- External power supply interface: DC3.5-1.3mm /5V (voltage must be 5V, not more than 5V )
- External power supply specifications: DC 5V >0.5A
- Coaxial, optical input current: 60mA
- USB input current: 200mA
- Headphone Power: 80MW/16 Ohm
- Audio output distortion: 0.001%
- Audio output range: RMS 1V
- Coaxial support format: PCM 44.1K-192K/24bit
- Fiber support format: PCM 44.1K-96K/24bit
- USB decoding support format: PCM 44.1K-384K/32bit, DSD64-DSD256 automatic identification and decoding (DXD format is not supported)
- USB interface supports OTG Android mobile phones, TV boxes, etc.  free drive for iOS system, Linux, Delphi system

Package Contents:
- 1 x DAC
- 1 x USB data cable
- 1 x USB to 3.5mm power cable
