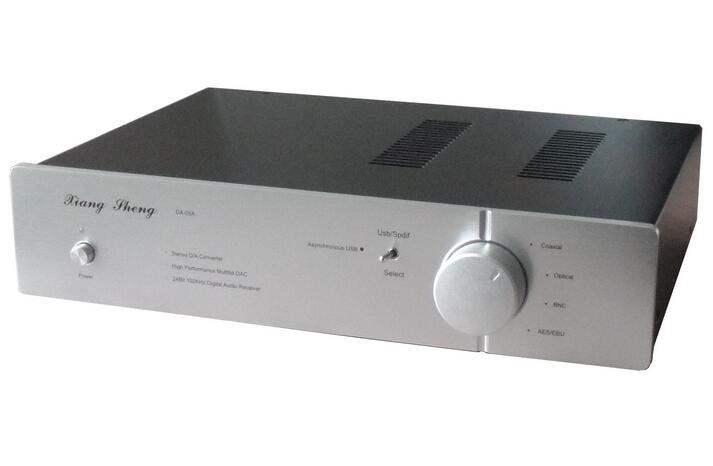

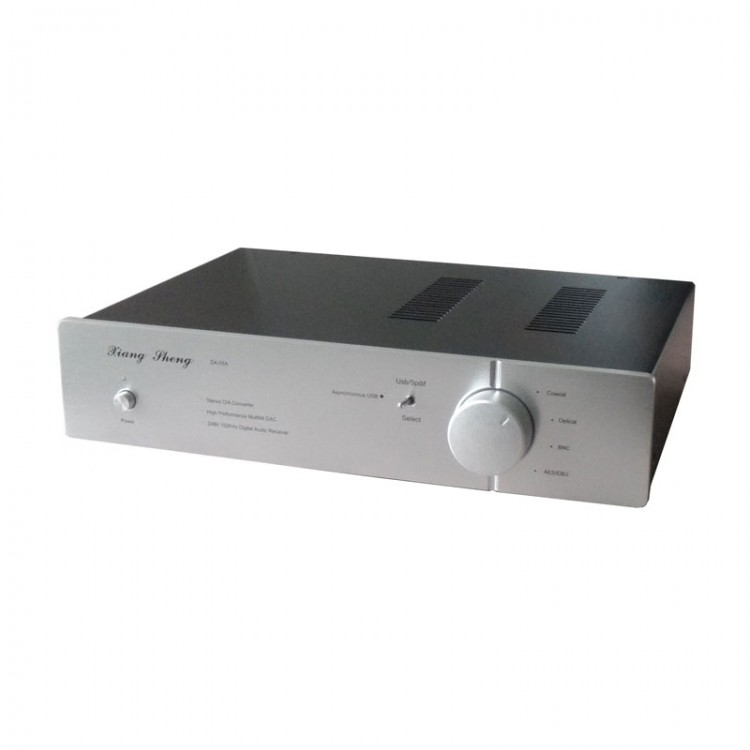

DAC Decoder Board Complete Amplifier AK4118 Built-in XMOS-U8 5V

Tags: DAC Decoder Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$267.78
  • Price in reward points: 2678 Reward Points: 27
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $262.42 $257.07 $249.04 $238.32 Contact US
Quantity:

DAC Decoder Board Complete Amplifier AK4118 Built-in XMOS-U8 5V



Product Description:DA-05A:USB asynchronous XMOS chip,IIS straight dual PCM1794 decoder,Mono mode,digital receive AK4118,jitter is lower.balance output,Independent filter circuit.

Product Specification:
- Outline dimension:330x220x70 mm(WxDxH)
- Frequency response:20Hz-35KHz
- SNR: normal interface output:110dB
- Harmonic distortion:ormal interface output:<0.001%
- Support <=24bit digital stream
- Support the following sampling rate:44.1kHz,48kHz,88.2kHz,96kHz,176.4KHz,192KHz
- Output level:balanced output:9V,unbalanced output:2V
- Dynamic range:balanced output: >120dB,unbalanced output: >110dB
- Input impedanceAES/120 ohm,other digital interface /75 ohm
- Output impedance:600 ohm
- Input voltage:110V/220V;50Hz
- Net weight:2.5Kg
- Gross weight:4Kg

Product Parameter:
- Mode:DA-05A
- USB chip:XMOS-U8

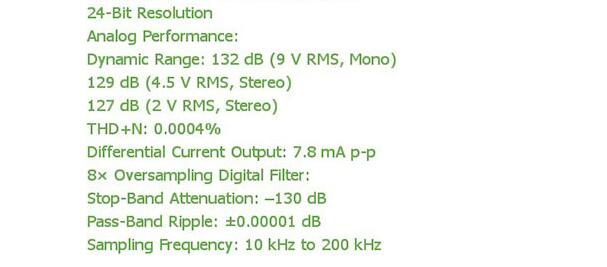

- Decode chip:PCM1794Ax2PCS Mono mode

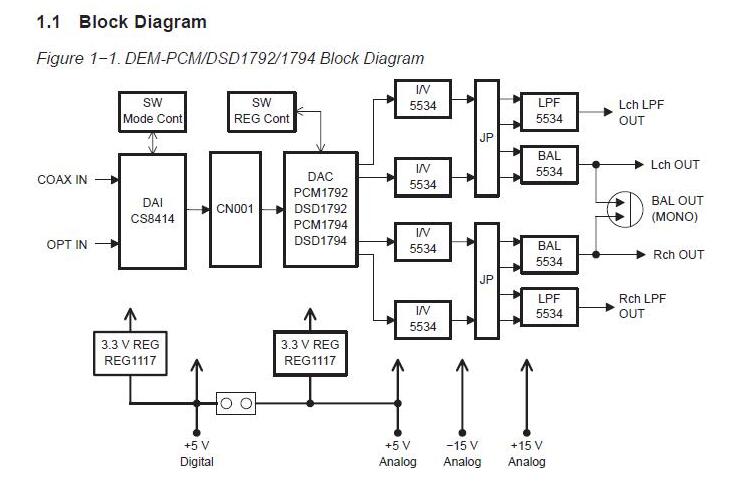

- Digital receive:AK4118 receive Spdif signal to IIS dual PCM 1794AC decode;USB to IIS direct dual PCM 1794A decode.
- Coaxial output:No
- Balanced output:Yes
- Unbalanced:1 pair
- Relay mute:No

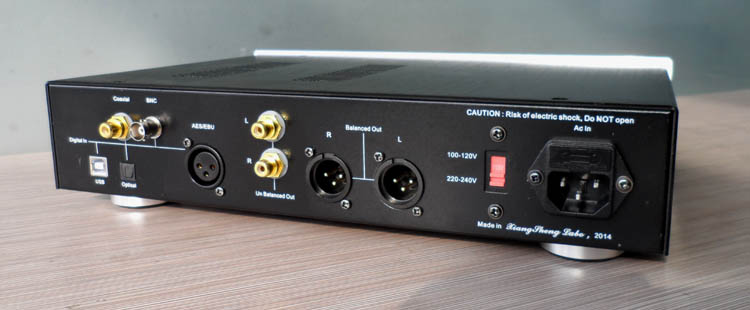

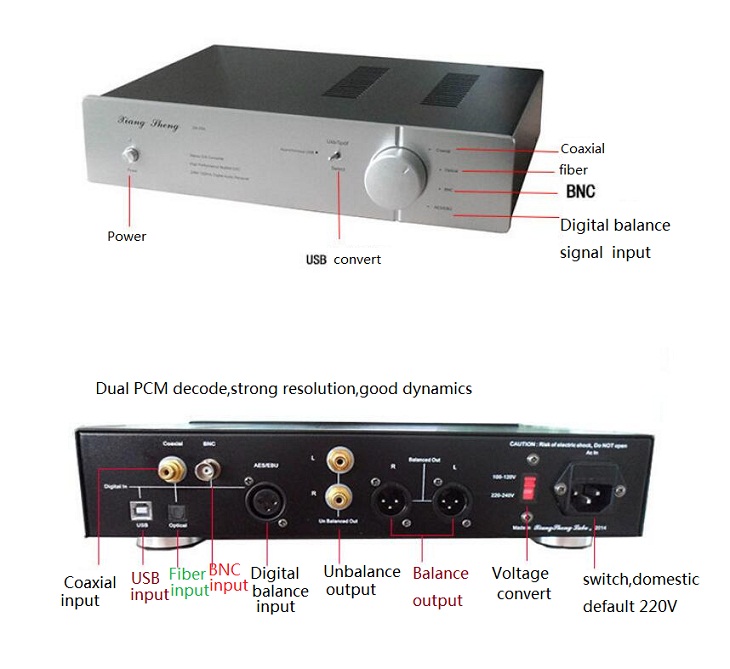

- Input channels:Pc-usb;coaxial;fiber;Bnc;AES.
- Support format:Pcm format (Wav;Wma;APE;Flac;MP3)
- The highest support depth&sampling rate:All input support 24 bit,192bit.

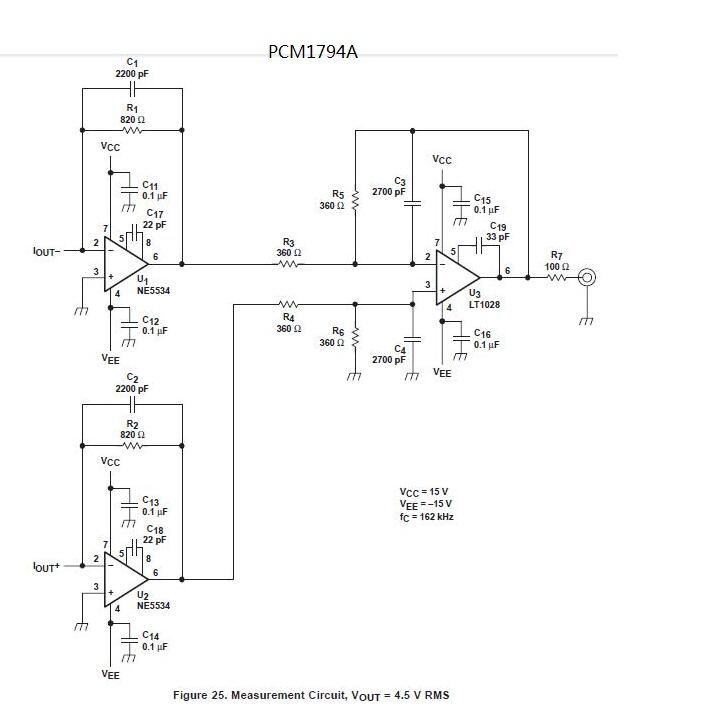

- Amplifier configuration:OPA2134PAx6PCS;OPA2604AUx3PCS (I/V transform 4pcs;balanced filter 2pcs;unbalanced filter 2pcs;isolation 2pcs) optional amplifier update approach
- Power configuration:
- Power configuration:Digital part 5V
- Colour:Silver/Black

DAC-05A Digital Balanced Decoder GenerationⅣ:
- USB update asynchronous XMOS latest U8 chaip
- Dual PCM1794A MONO mode
- Digital receive chip update AK4118,jitter value is the lowest.
- 9 PCS dual amplifier OPA2134PA+OPA2604AU,balanced and unbalanced independent LPF filter
- 5-channel digital input

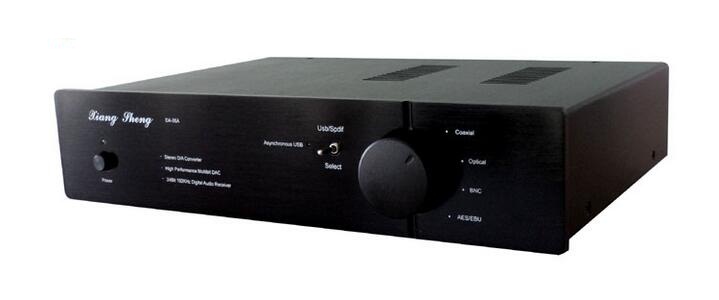

Note:The pricce for the balck decoder is lower,261.77USD.

Package List:
- 1 x DA-05A DAC Decoder
