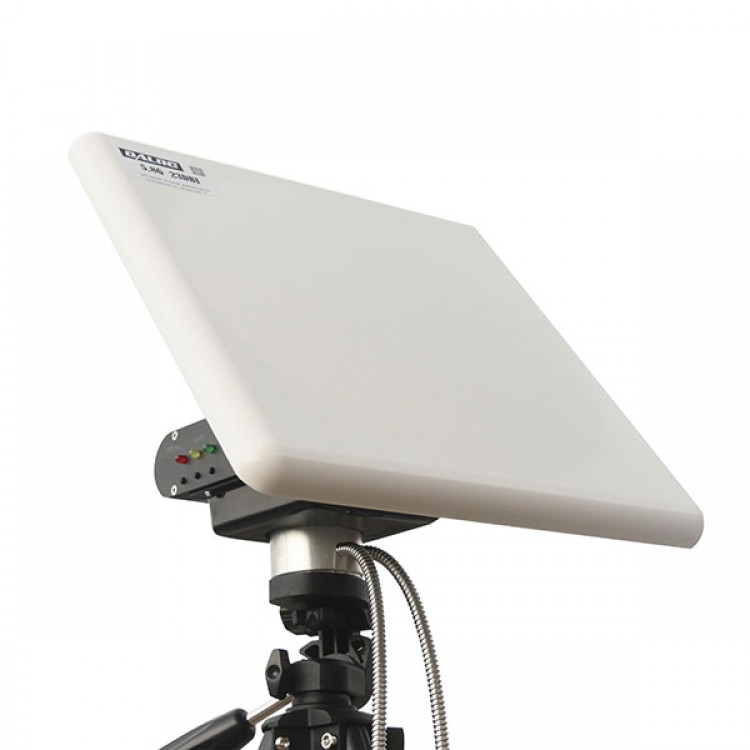

DAL 5.8G 23dbi High Performance Flat Panel Antenna / MFD AAT Automatically Track / Image Transmission FPV / Aerial
Introduction:
- DAL 5.8G 23db microwave antennas , and with the MFD tracking PTZ can achieve long-distance video transmission. Can effectively improve the stability of the transmission distance and image.
Note: This product contains only white panel antenna , head and tripod , etc. are not included !
Electrical performance parameters
- Product Type DAL5159-11-23
- Frequency Range 5150-5950 MHz
- Gain 23 dBi
- VSWR 1.5
- 3dBHorizontal beamwidth 11
- 3dBVertical beamwidth 11
- Polarization Vertical or horizontal polarization
- Front to back ratio > 25 dB
- Maximum power 50 Watt
- Impedance 50
- Lightning Protection DC Grounded
- Mechanical performance parameters
- Connector Type SMA jack
- Antenna Size 306 × 306 × 25 mm
- Weight 1.6 KG
- Radome material UV-resistant ABS
- Rod diameter Ø40 ~ Ø60 mm
- Operating Temperature -40 C to + 65 C
