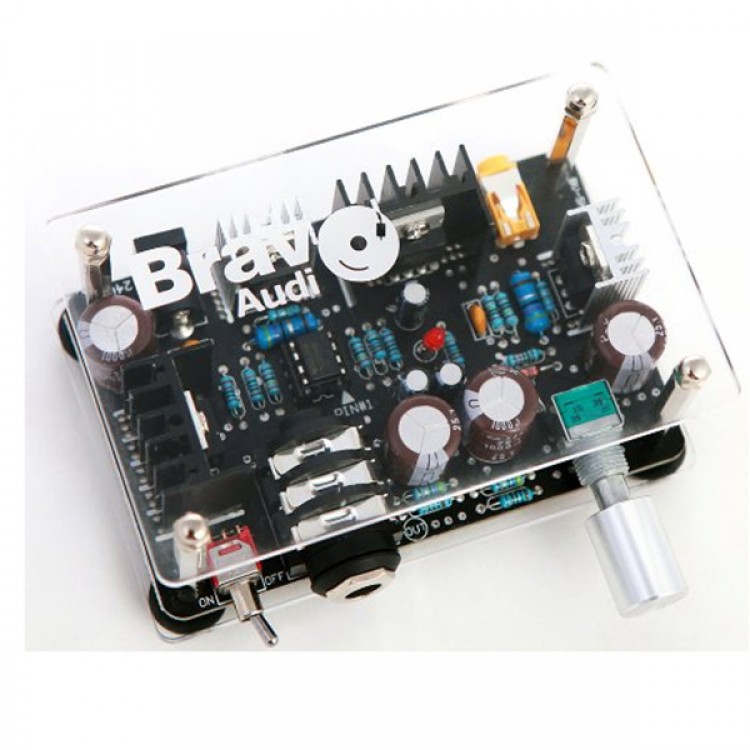

DC 24V 480mV DIY No-Tube Bravo Audio S1 Solid State Headphone Amplifier Op-Amp
Description:
New from Bravo Audio. The S1 solid state amplifier from Bravo Audio creates beautiful amplification of audio with a fidelity to please any discerning audiophile. It is assembled with top of the line components that allow customization for those who like to modify their amplifiers to obtain a different sound. This amplifier is the latest in a successful line of audiophile quality amplifiers such as the V1, V2, V3 and Ocean.
Features:
- Solid State Amplifier
- Easy to Change IC for Different Sound
- Powerful Response for Any Headphone
Parameters:
- InPut Power: DC24V
- Input Sensitivity : 480mV
- Input Impedance : 100KOhm
- Output Impedance : 20~600 Ohm
- Gain : 16.21dB
- Frequency response : 50Hz-20KHz +/- 1.5dB
- Signal/Noise Ratio: 68dB
- THD : 0.060%(5 mW) 0.12%(30 mW)I
- Noise level : 600 uV
- Dimension : 100mm (D) X 87mm (W) X 52mm (H)
- Input Stereo : 3.5mm x1
- Output Stereo : 6.35mm x1
Package included:
- 1 x Solid State Headphone Amplifier
