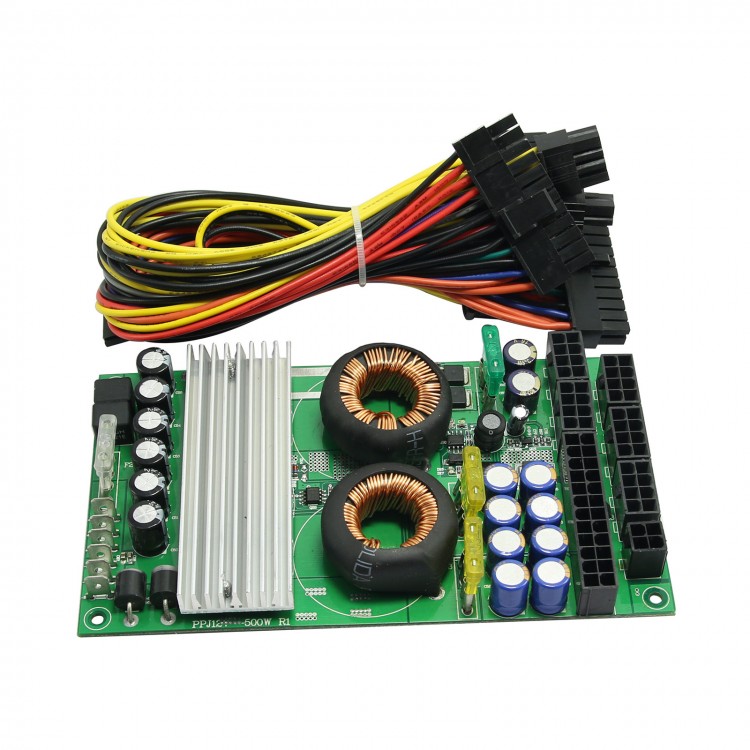

DC-ATX PPJ-12-500 Voltage Converter Board 12V DC 500W Power Supply Regulator

DC-ATX PPJ-12-500 Voltage Converter Board 12V DC 500W Power Supply Regulator

Features:
- 12VDC input, 500W ATX output
- With over voltage, less voltage, short circuit protection
- Over 90% transform efficiency
- Standard 24PIN ATX output
- Power board for Mini-ITX mainboard

Input Parameter:
- Input voltage: 12V DC+/-5%
- Input current: 50A 12V DC
- Impact current: 80A 12V DC
- With input fuse
- Non-isolation design
- With over voltage, less voltage, short circuit protection

Normal Parameter:
- Transfer efficiency: 90%
- Continous time: 2ms
- Switch frequency: 200K
- Weight: 270g
- Average Non-fault time: >120.000hour
- Size: 160*90*20mm

Output Parameter:
- Output voltage: 3.3V, +5V, +12V, +5VSB, -12V
- Output current: 20A, 20A, 30A, 2A, 0.2A
- Voltage modulation: 5%
- Output wave: 33mv, 50mv, 120mv, 50mv, 120mv
- Rise time: 10ms
- Output overshot: 10%

Environment Parameter:
- Work temperature: -20 to + 50degree
- Storage temperature: -40~+85degree
- Cooling: Nature cooling
- Humidity: 5~95%RH
