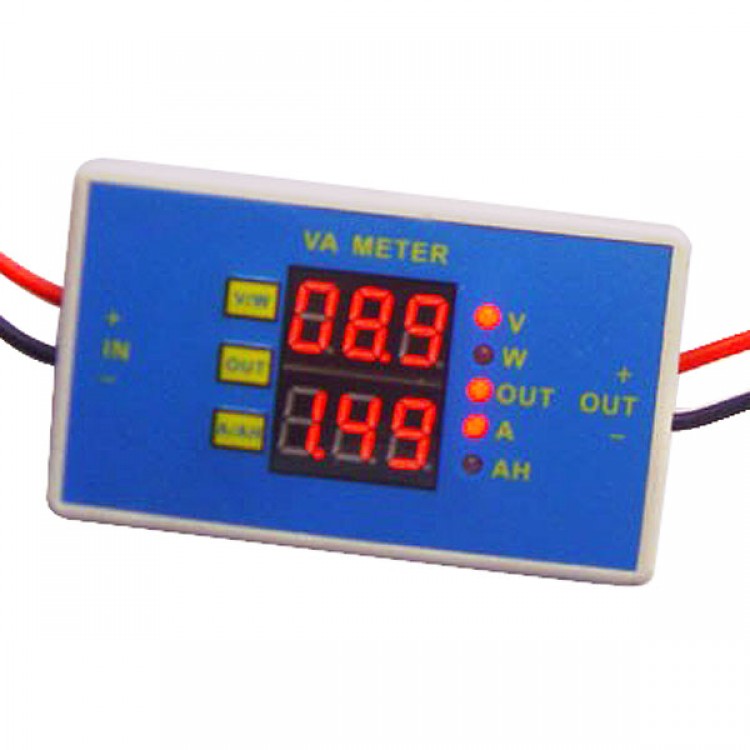

DC-DC 3A 56V Dual-display Power Current Voltage Meter VA Meter WAM563 F Test Device
- This is a 3A double display dc volometer,can also shows output voltage and output current together, through the internal mathematical operation, also can display power (W) and current (AH),make the necessary protection control according to difference parameters.
- Suitable for test devices & equipment, such as measuring voltage, monitoring battery & electrical system and so on.
- Two input methods:2 wire and 3 line; you can use two wire if need to expand the power supply, In 3 line system,measurable input voltage to 80 V, minimum measurable input voltage to 0 V.
- Show voltage and current together: can show power and current too.
- Flexible online calibration
- Three LED digital display tube, suitable for most cases applications
- Design for 20 A current, support external shunt,maximum current unlimited expansion
- Measuring voltage range: VAM406:3.8 V ~ 56 V
- Measuring current range: 0 ~ 3 A
- Mode of Voltage current display : 3 byte LED display
- Display resolution: 0.01 V, 0.01 A and 0.01 W, 0.01 AH
- Voltage accuracy: ±0.2% + 2 byte
- Current accuracy: ±1% + 3byte
- Measuring rate: 5 times/SEC
- Protection type:OCP,OAH,OVP,OPP
- Protection range:
- OCP: 0.01-6.4 A (VAM406)
- OAH: 0.01 AH-650 AH
- OVP: 0.01-40 V (VAM406)
- OPP: 0.01 W-384 W
- Size: 85 mm * 50 mm * 20 mm
1 x VAM563 volometer
