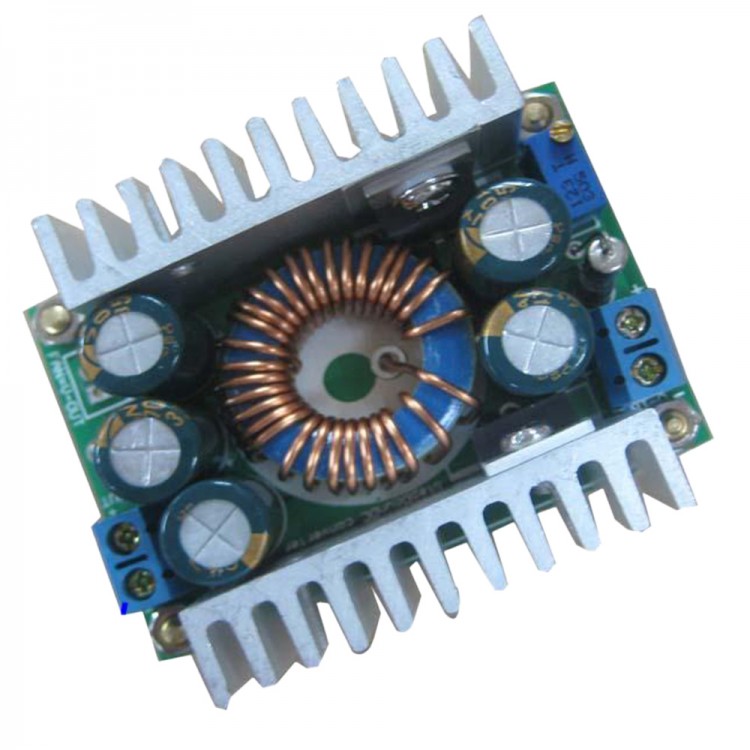

DC-DC Buck Power Module Low Ripple 8A Adjustable 4.5-40V to 0.8-35V Step-Down Converter

DC-DC Buck Power Module Low Ripple 8A Adjustable 4.5-40V to 0.8-35V Step-Down Converter

Parameters:
- Module: non-isolated step-down module (BUCK)
- Input voltage: 4.5-30V (MAX)
- Output voltage: 0.8-30V continuously adjustable
- 0.8-30V fixed output
- Output Current: 0-8A
- Working temperature: -40 to +85 degrees
- Operating Frequency: 300KHz
- Conversion efficiency: up to 95% (conversion efficiency and input and output pressure related to the pressure the greater the output current is smaller)
- Short-circuit protection: Yes (limited current 14A)
- Over-temperature protection: Yes (automatic shutdown after over-temperature output)
- Input Reverse Polarity Protection: No, you can do the protection diode in series 2 at the input
- Module size: 60'' 51'' 22mm (length'' W'' high)
- Wiring: free welding output terminals, with aluminum shell welding output. (V-IN is input, V-OUT is the output

Applications:
This module can be applied to fields in the input voltage is higher than the buck output voltage
Such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power.
Industrial buck equipment, 12V switch 3.3V, 12V turn 5V, 24V turn 5V, 24V to 12V and so on

Package included:
- 1 x DC-DC Buck Power Module
