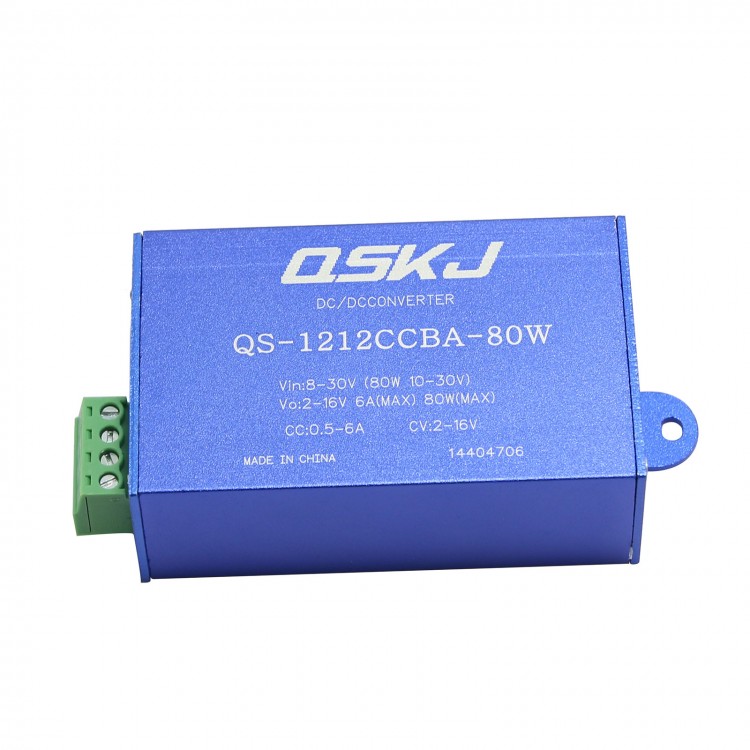

DC-DC Converter 8-30V to 2-16V 80W CC/CV Power Supply Module Low Ripple

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.63
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.20 $20.76 $20.12 $19.25 Contact US
Quantity:

DC-DC Converter 8-30V to 2-16V 80W CC/CV Power Supply Module Low Ripple

Feature:

    Module properties:non-isolated,auto switch step-down/step-up voltage,CC/CV adjustable
    Input voltage :8-30V
    Output voltage: adjustable (2-16V)
    Output current range :0.5-6A (80W MAX) (continuously adjustable)
    Output power: natural cooling 80W (input voltage higher than 10V,the input 8V the MAX output is 60W)
    The common voltage and current work efficiency(reference only):
    Input 12V  Output 12V  0.5A  efficiency 90%
    Input 12V  Output 12V  1.0A  efficiency 93.6%
    Input 12V  Output 12V  1.5A  efficiency 94.6%
    Input 12V  Output 12V  2.0A  efficiency 94.1%
    Input 12V  Output 12V  2.5A  efficiency 93.8%
    Input 14V  Output 12V  3.0A  efficiency 93.7%
    Input 14V  Output 12V  3.5A  efficiency 93.1%
    Input 14V  Output 12V  4.0A  efficiency 92.9%
    Input 14V  Output 12V  4.5A  efficiency 92.6%
    Input 14V  Output 12V  5.0A  efficiency 92.0%
    Input 14V  Output 12V  5.5A  efficiency 91.3%
    Input 14V  Output 12V  6.0A  efficiency 90.0%
    Output ripple: 20M(reference only)
    Operating Temperature: Industrial (-40℃  to +85℃)(when the temperature more than 40℃, please reduce the power or strengthen cooling) the shell's surface temperature can not exceed 90℃.
    Full load temperature rise: 40℃
    No-load current: Typical 45mA (12V switch 12V)
    Load regulation: ± 2%
    Voltage regulation: ± 0.5%
    Dynamic response speed: 5% 200uS
    Short circuit protection: Yes (current limit, limit value is the constant current value)
    Low-voltage protection:7.7V
    Input Reverse Polarity Protection: Yes.
    Installation: screw(diameter 3 mm), Two fixed holes, two fixed hole spacing of 82 mm
    Wiring: You can plug terminals, pressure lines, no welding
    Shell: All aluminum, casting process, can work in harsh conditions
    Size:72(L)*42(W)*23(H) mm,including fixed holes the length is 90mm.

Some Applications:

    Battery voltage regulator. 12V battery(10-14V) stabilized at 12V. 24V battery stabilized at 12V. Solar charging regulator.
    Power supply for your electronic equipment.
    The system level before the power supply
    Constant current equipment, charge the battery and drive high power LED.

Package included:

     1x 80W Power supply module
