Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $5.30 | $5.19 | $5.03 | $4.81 | Contact US |

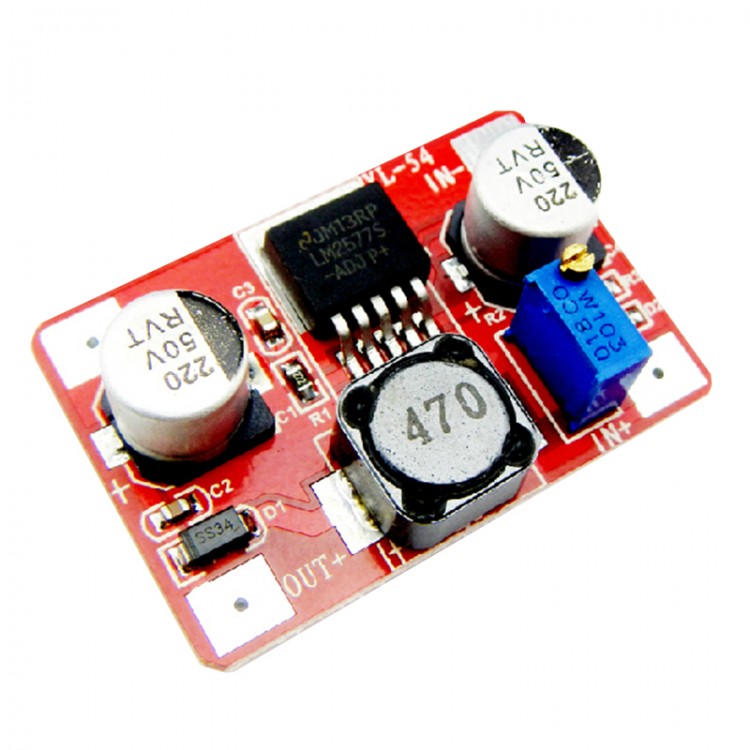

DC-DC LM2577 Step Up 3.5-30V to 4-30V Booster Power Singlechip Module Electronic Brisk DIY for Smart Car
Description:
- Module Properties: non-isolated step-up module
- Input voltage :3-30V
- Output voltage: adjustable(4-30V)
- Output Current: 2.5A(MAX)
- Input Current: 3A(MAX)
- Dimensions: L*W*H 4.3cm*3.0cm*1.2cm
- Input : "IN+" is input postive, "IN-" is input negative
- Output: "OUT+" is output postive, "OUT-" is output negative
- Adjustment method: first the right then the input power (3-30V, between) then multimeter to monitor the output voltage and adjust potentiometer (clockwise turn down, turn counterclockwise boost)
- Output Voltage :4-30V continuously adjustable (building load debug) Our default shipment voltage 12V For other voltages can be their own regulation.
