Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $10.96 | $10.73 | $10.40 | $9.95 | Contact US |

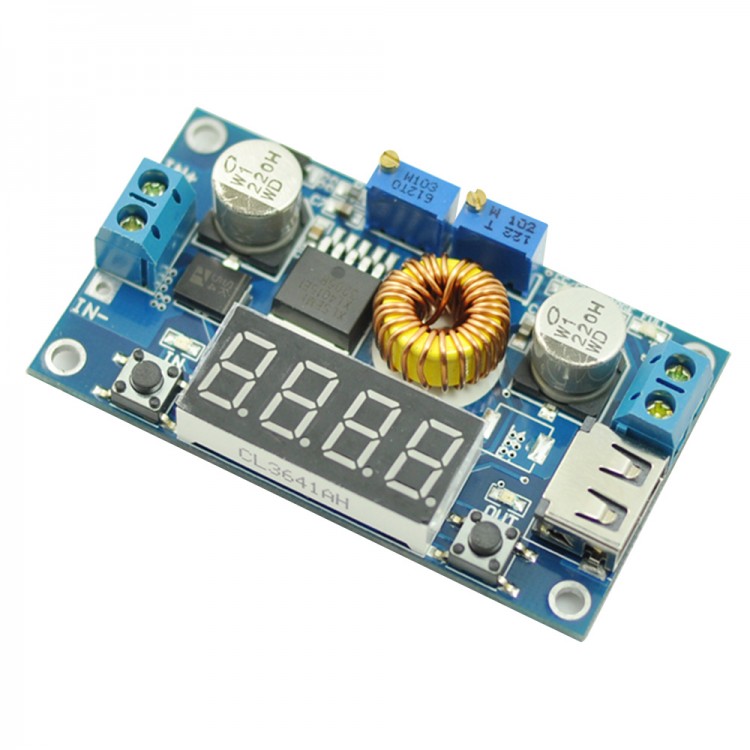

DC DC Step Down Buck Module 12V to 5V Power Supply USB Port Voltage Current Power Meter
Function:
- Over heat protection
- As the charger for lithium battery,NiCd and NiMH battery,etc
- As high power LED constant current drive module
- Constant voltage and constant current modes, light indicator indicating which mode
- Can set float charging voltage and charging current when as lithium battery charger
- With current limitation protection
- Self calibration for current meter and voltage meter
Note: When charging to the USB device with USB interface,please make sure it is 5V.
Parameters:
- Input voltage: 5-36V (input voltage should be more than 6.5V)
- Output voltage: 1.25-32V adjustable (as step down module only,input voltage should be more than output one as 2V and above)
- Output current: Adjustab;e, maximum 5A (When constant current,should otuput 2V so that it can be adjustable.)
- Output power: Maximum 75W (recommend <50W)
- Working temperature: -40~85 degC
- Working frequency: 180KHz
- Conversion efficiency: Maximum 96%
- Short circuit protection
- Over temperature protection
- Input reverse protection: No
- Mounting: 4*3mm screws
- Size: 68.2*38.8*15mm
- Weight: 35g
- 20V output as default
NOTE:
- The input ground and output should not be together.
- Module otuput with current sample resistance,there is 0-0.2V voltage step down when loading
- If the voltage cannot be adjusted, please turn the potentiometer counter clockwise over 10 laps.
- Please pay attention to heat sink when over 3A 35W otuput.
Package list:
- 1 x DC DC Step Down Buck Module
