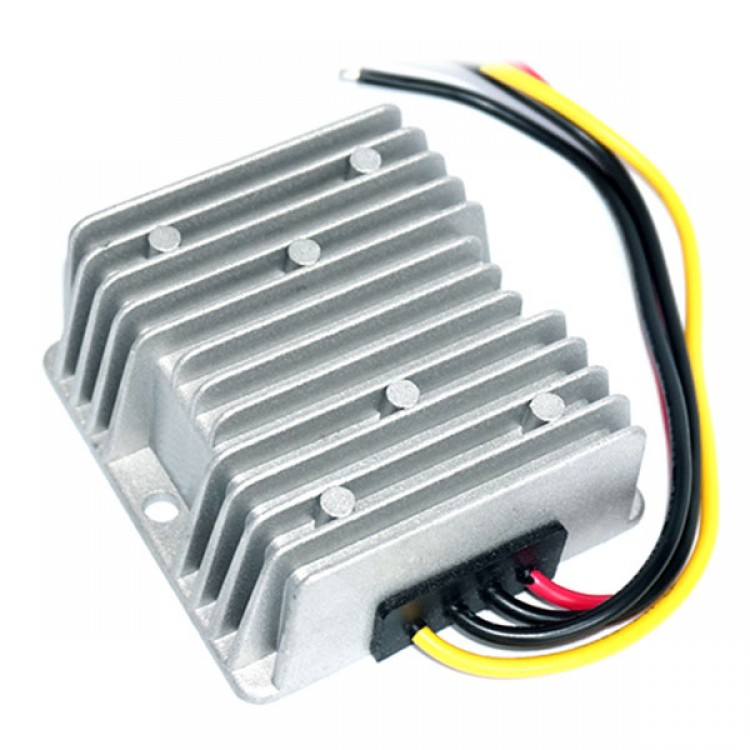

DC-DC Voltage Converter 48V to 24V 5A 120W 48-60V Step Down Power Regulator

- Input voltage: 48V (35V-63V)

- Output voltage: 24V

- Output Current: 5A

- Output power: 120W enough power

- Conversion efficiency:> 95%

- Voltage regulation: <1%

- Load Regulation: <2%

- Full ripple (10A): <50mV

- The maximum operating temperature of 80 ° C



Features:

- Overvoltage Protection

- Overcurrent protection

- Overheat protection

- Short-circuit protection, and automatic return to work after the lifting

- Synchronous buck design, high efficiency, very little heat

- Full potting waterproof design

- Small: 74X74X32mm

- Weight: about 280 grams

- Whether with USB: No



    All products using the world of plants imported components, all rigorously tested and loaded aging, stable and reliable quality! Imported high-power integrated switching regulator circuit as the core, can convert the DC power supply instability is stable 135-63V 24V DC power output. Over-current, over temperature, output short circuit protection function, and after the failure to eliminate resume normal operation. This product uses the die-cast aluminum housing, excellent heat dissipation robust, reliable, easy to install, fully sealed waterproof epoxy potting seismic, long-term use, stable and reliable quality!



    With its ultra-high conversion efficiency (> 95%), essentially no heat is generated, a small plastic enclosure with mounting holes, only about the size of a matchbox, the thickness of only 32mm, the wiring length is 17 cm, easy installation, and internal with a thermally conductive epoxy potting full sealed waterproof earthquake. On the vehicle performance is very stable and reliable.
