DC Servo Motor Driver Module Serial/I2C PID Control +2pcs Faulhaber Motor
  • DC Servo Motor Driver Module Serial/I2C PID Control +2pcs Faulhaber Motor

  • SKU:27887
    (4 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$71.90
  • Price in reward points: 719
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $70.46 $69.02 $66.87 $63.99 Contact US

DC Servo Motor Driver Module Serial/I2C PID Control +2pcs Faulhaber Motor

Description:
- This product can drive two dc motors, and has the following features:
- using photoelectric encoder for closed-loop control
- through a serial port 8 byte command can control direction and speed of the motor, baud rate self identification
- through the I2C byte order 5 can control the direction of the motor and Max up 400KHz
- PID parameter adjustable
- Use the timer timer way to increase the resolution of the encoder, for low resolution encoder can improve accuracy of 40 times

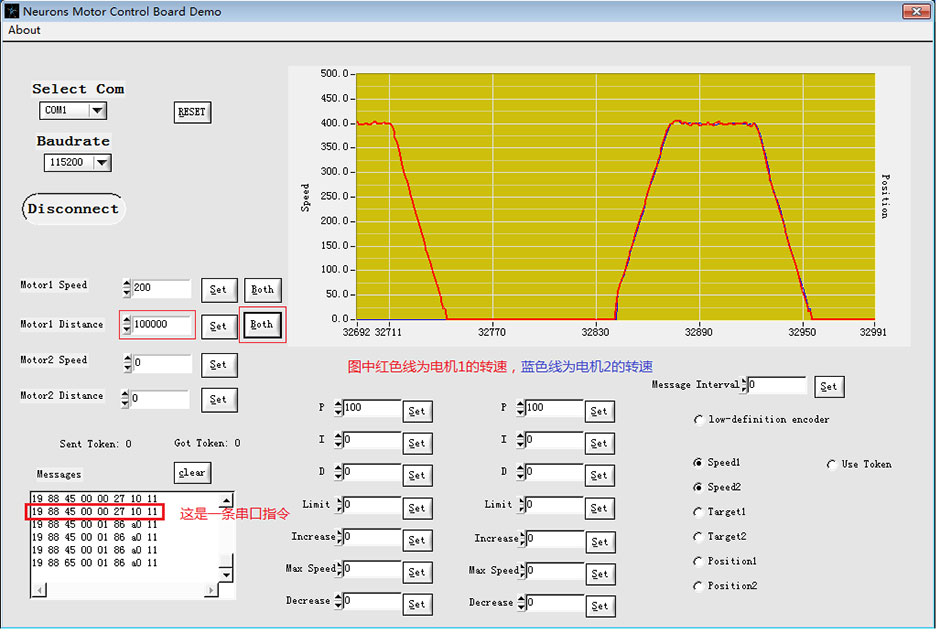

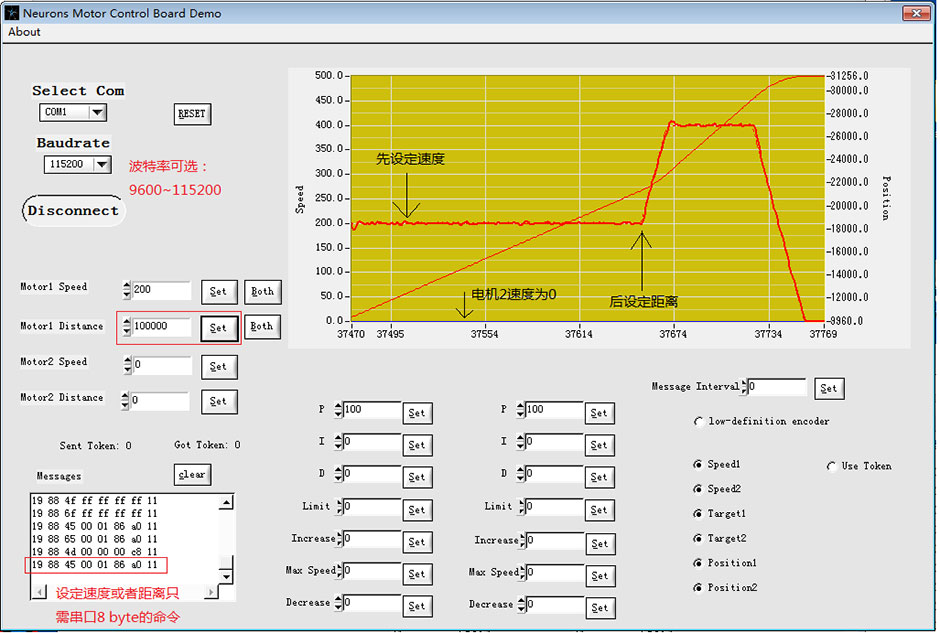

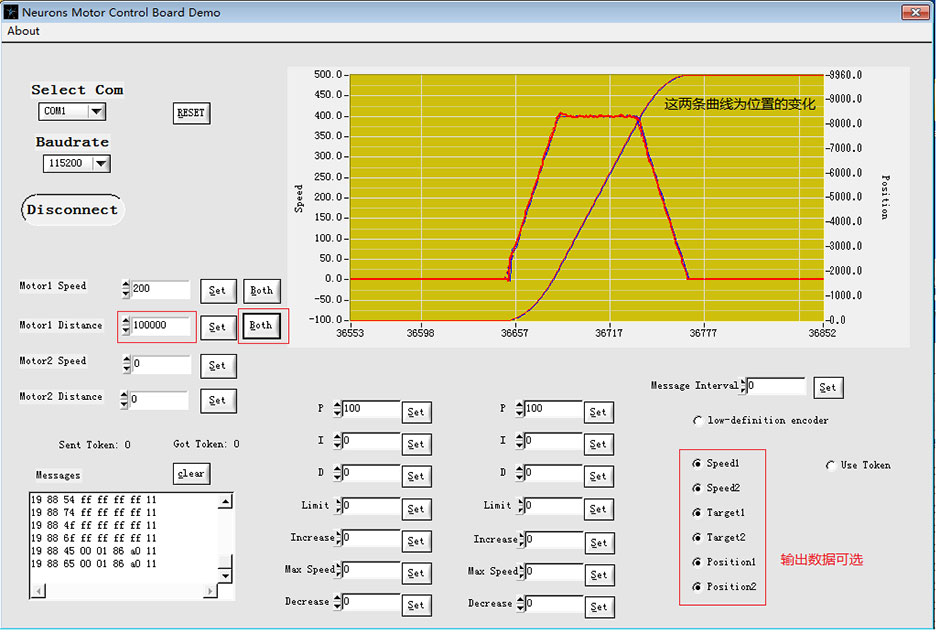

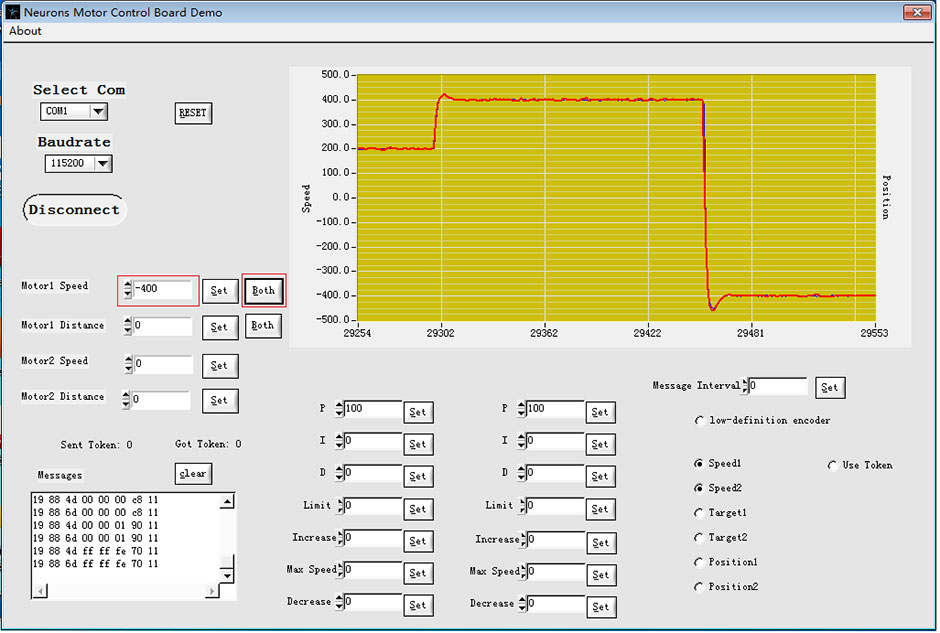

- Provide the PC software and arduino routines
- With a reasonable default parameters, can get after not initialized directly use









Features:
- Convenient and easy to use, only a serial port to control the dual motor speed marching direction and distance
- Using four frequency + timer motor speed perception, can improve speed measuring precision is 40 times
- Various parameters can be reset
- Provide the I2C interface control

Package list:
- 1 x motor driver module
- 2 x motor
