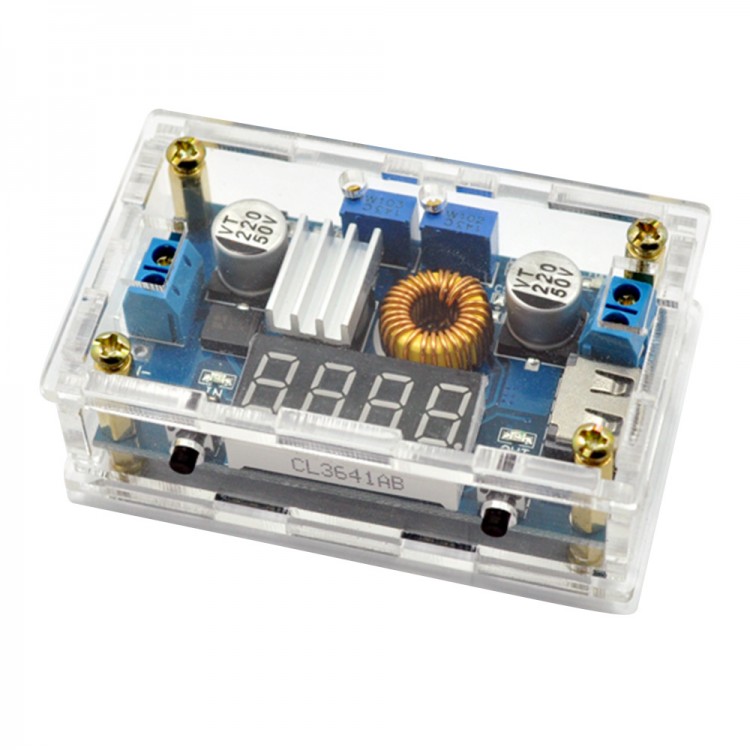

DC Step Down Buck Module Power Supply Adjustable 24V 12V to 5V Voltage Power Current Meter with Shell
Specifications:
- Onboard voltage, current and power meter
- Onboard USB interface
- With case
- High power, low ripple, 5A
- Spare parts for shell
Function:
- Over heat protection
- As the charger for lithium battery,NiCd and NiMH battery,etc
- As high power LED constant current drive module
- Constant voltage and constant current modes, light indicator indicating which mode
- Can set float charging voltage and charging current when as lithium battery charger
- With current limitation protection
- Self calibration for current meter and voltage meter
Note: When charging to the USB device with USB interface,please make sure it is 5V.
Parameters:
- Input voltage: 5-36V (input voltage should be more than 6.5V)
- Output voltage: 1.25-32V adjustable (as step down module only,input voltage should be more than output one as 2V and above)
- Output current: Adjustab;e, maximum 5A (When constant current,should otuput 2V so that it can be adjustable.)
- Output power: Maximum 75W (recommend <50W)
- Working temperature: -40~85 degC
- Working frequency: 180KHz
- Conversion efficiency: Maximum 96%
- Short circuit protection
- Over temperature protection
- Input reverse protection: No
- Mounting: 4*3mm screws
- Size: 68.2*38.8*15mm
- Weight: 73g
Application:
- Step down module with over current protection
- Battery charger
- LED constant drive module
Package list:
- 1 x DC Step Down Buck Module
