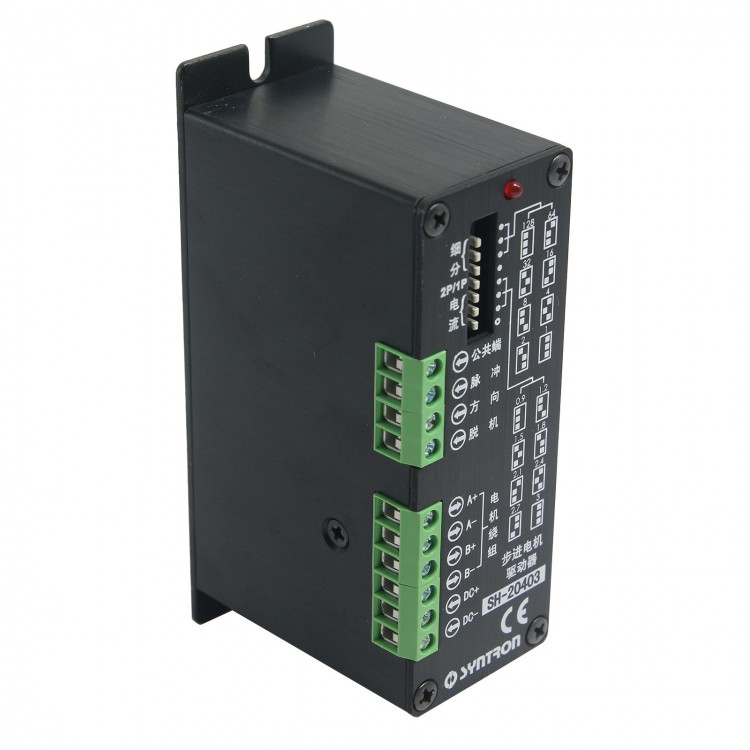

DC0V-40V 3A 128 Subdivision Two-Phase Hybrid Stepping Motor Driver SH-20403

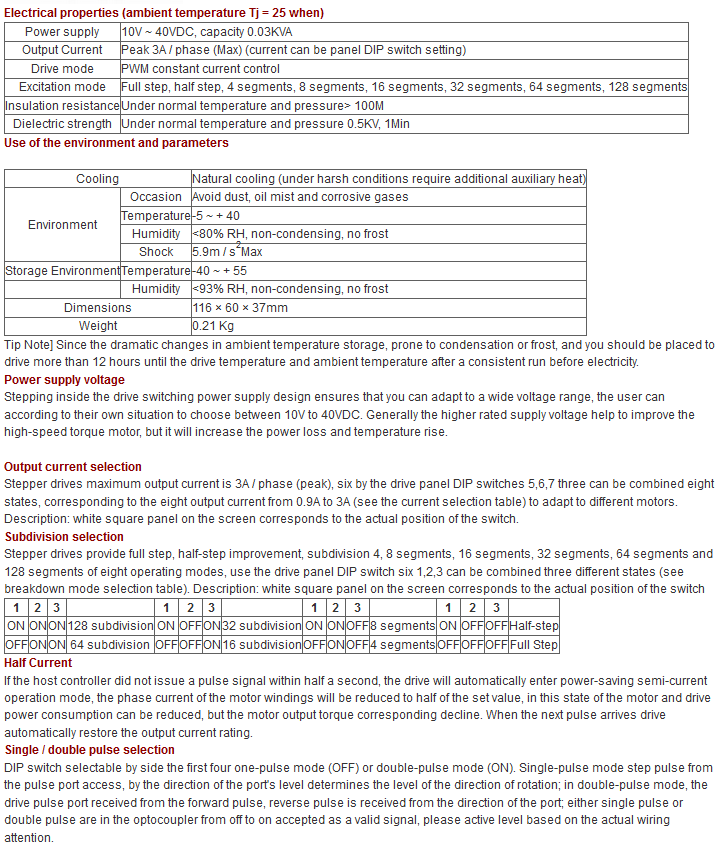

Technical Features:
- 10V ~ 40V DC power supply
- H-bridge bipolar constant phase flow drive
- The maximum output current of 3A eight optional
- Up to 128 segments optional seven Subdivision

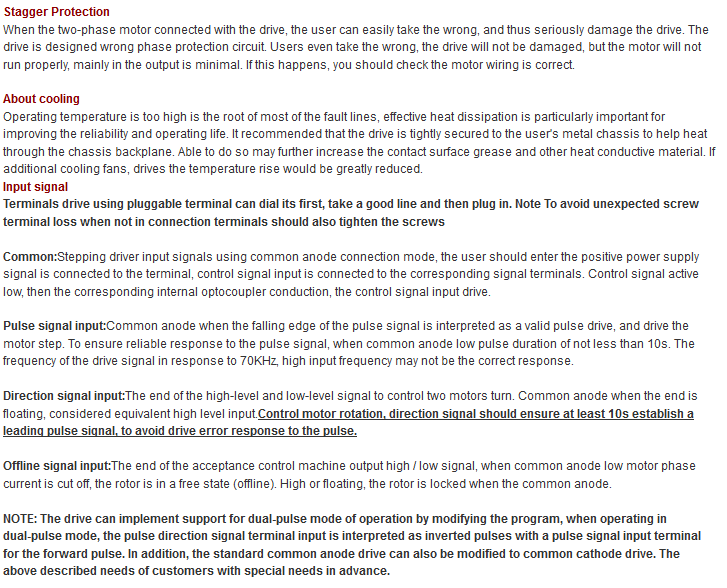

- Input signal
- Standard common anode single pulse interface
- Offline hold function
- Semi-closed housing can adapt to a more demanding environment
- Providing energy-saving automatic half current lock
- By CE certification
Package included:
- 1 x Stepper Motor Driver
