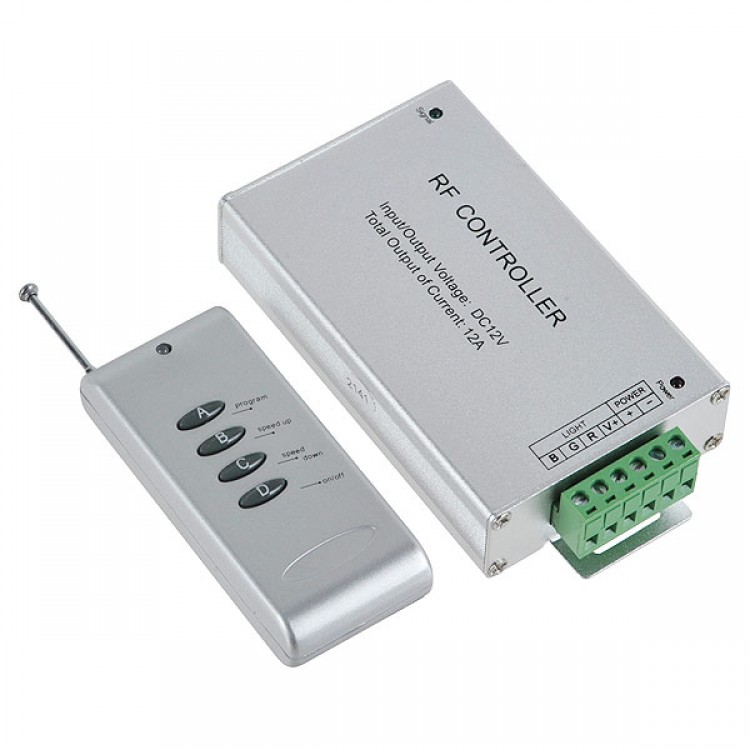

DC12V 12A LED Light Remote RF Controller

DC12V 12A LED Light Remote RF Controller

Description:
Radio frequency controller chips using advanced computer control for controlling the various kinds of led lamps as the light source, such as: point source, soft light, wall lamp, glass wall lamps, etc.; with wiring, easy to use and simple; under the actual needs of our customers can achieve jump change, gradual change, strobe and other lighting variation.
Technical parameters
- Operating temperature: -20-60°C
- Supply voltage: DC5V, 12V ,18V, 24V Optional (order specify required voltage)
- Output: 3 channels
- Control Model: common anode
- Transmitting and receiving frequency: 315Mhz 433 Mhz
- Dimensions: L130ΧW64ΧH24 mm
-  Packing size: L160ΧW95ΧH51 mm
-  Net weight: 185g
- GW: 220g
- Static power: <1W
- Output Current: <4A (Per circuit)
- Output Power: 5V:<60W, 12V:<144W, 24V:<288W
Direction for use:
- connect the load line,Afterwards the power,and to ensure no short circuit between the cable;
- Wireless radio control, a total of 4 keys, each key functions as follows:
- Program: Features like color selection keys, each time, the light like a color change;
- Speed up: Speed up button
- Speed down: Speed down button
- On/off: The key to open, any state can be turned on or off the controller output.
- Changes in function of the standard as follows:
Model

Changes in function of the standard as follows:
