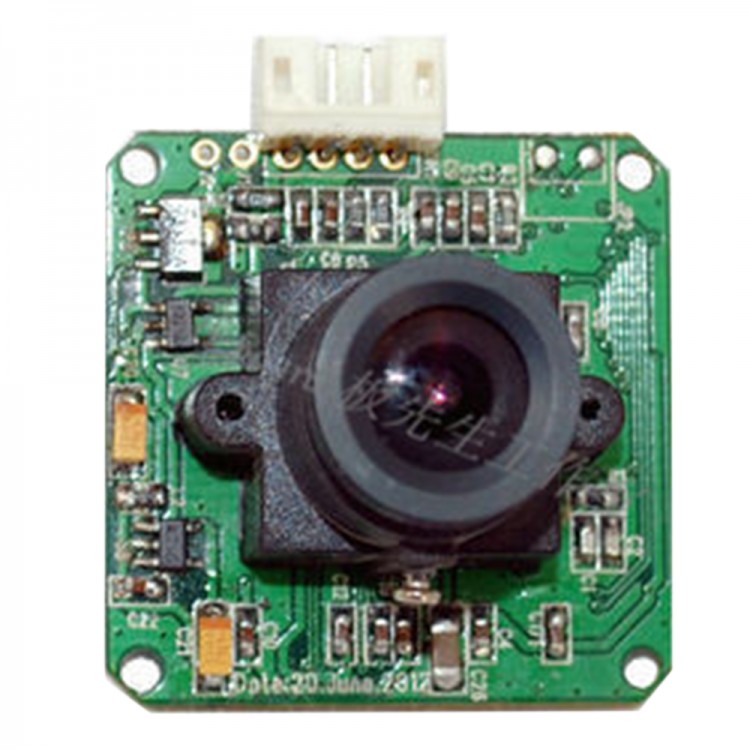

DC3.3V 5V LS-Y201-2MP JPEG 2M Pixel Color Serial Port Camera Module TTL Level for DIY
Description:
LS-Y201-2MP is a new generation high resolution serial port camera module. Its resolution is 2 million pixel. It can collects high resolution pictures using the serial port. LS-Y201-2MP is a modular design that outputs JPEG images through UART, and can be easily integrated into existing design.
Specification:
- 2 Million Pixels
- Support collecting JPEG from serial port
- Default baud rate of serial port is 38400
- DC 3.3V or 5V power supply
- Size: 32mm x 32mm
- Current consumption: 80-100mA
- The pin near C03 is AV output pin, which is an analog output pin.
Application Idea:
- Different image acquisition systems
- Environmental monitoring
- Industry monitoring
- Medical equipment
- Video phone
- Security
- Vehicle based GPS
Introduction link: Click here
Package included:
- 1 x Camera Module
