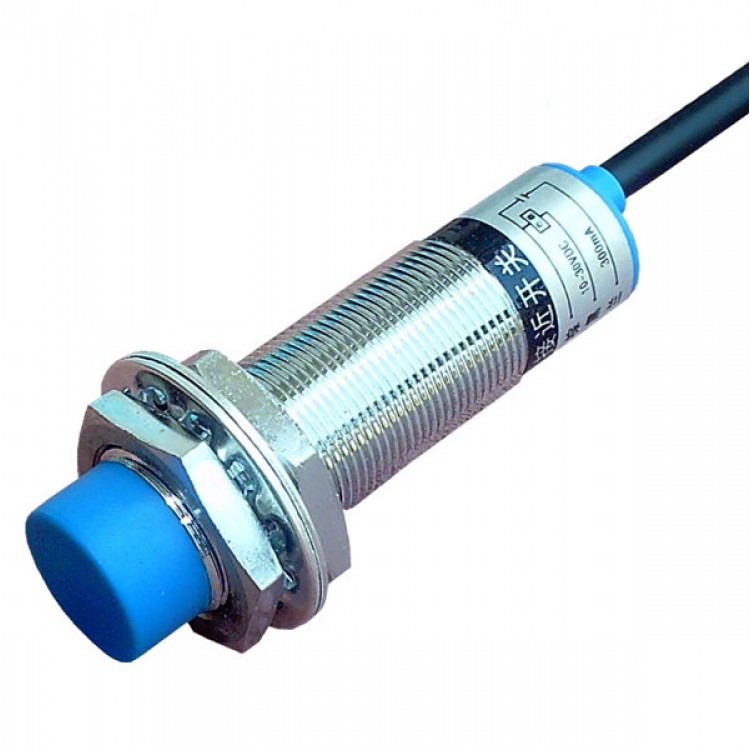

DC6~36V NPN Approach Switch 200mA Proximity Switch LJ 18A3-8-Z/BX
  • DC6~36V NPN Approach Switch 200mA Proximity Switch LJ 18A3-8-Z/BX
  • DC6~36V NPN Approach Switch 200mA Proximity Switch LJ 18A3-8-Z/BX

  • SKU:23426
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$8.93
  • Price in reward points: 89
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.75 $8.57 $8.30 $7.95 Contact US

DC6~36V NPN Approach Switch 200mA Proximity Switch LJ 18A3-8-Z/BX
Specifications:
- Proximity Switch ,approach switch:Competitive Quality and price, perfect after-sales service -We all have these good conditions
- Proximity Switch ,approach switch ,inductive proximity switch

Dimension

       M18(LJ18)

Mounting way

Screen shield type



T



Y



P



E



DC

type

N

P

N

  NO

LJ18A3-8-Z/BX

  NC

LJ18A3-8-Z/AX

NO+NC

LJ18A3-8-Z/CX

P

N

P

  NO

LJ18A3-8-Z/BY

  NC

LJ18A3-8-Z/AY

 NO+NC

LJ18A3-8-Z/CY

Two

wire

  NO

LJ18A3-8-Z/EX

  NC

LJ18A3-8-Z/DX

AC



type

Two

wire

  NO

LJ18A3-8-J/EZ

  NC

LJ18A3-8-J/DZ

Three    wire

 NO+NC

LJ18A3-8-J/EDZ

    Detection distance

8mm+/-10%

    Set distance

0~7mm

  Standard detection object

Iro30*30*1

   Response frequency

DC:0.5Khz AC:25Hz

  Delay distance:

10% below of the detection distance

  Supply voltage

DCtype:DC12-24V(6-36V)Impulse(p-p)10%below

Actype:AC110-220V(36-250V)50/60Hz

  Consumption current

N.P type:13mA below   D type:0.8mA below

A type:1.7mA below

  Control output

N.P type:300 mA below  D type:200mA below

A type:400mA below

Loop protection

N.P.D type:reversal connection protection, surge

Absorption, load short-circuit protection

A type: surge absorption

Ambient temperaturehumidity

During operation,storage:individually-30~+65(

No freeze,no drew),During operation,storage

Individually35~95%RH

Insulation resistance

50 MΩ about(DC500 megameter) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-30~+65,at+23,+/-15% detection distance

Temperature range-25~+60,at+23,+/-10% detection distance

Voltage influence

Inside+/-15%rated supply voltagerange,at rated supply voltage value

Protection sturcture

IP67IEC specification

material

(HousingABS), Detection surface:ABS)
