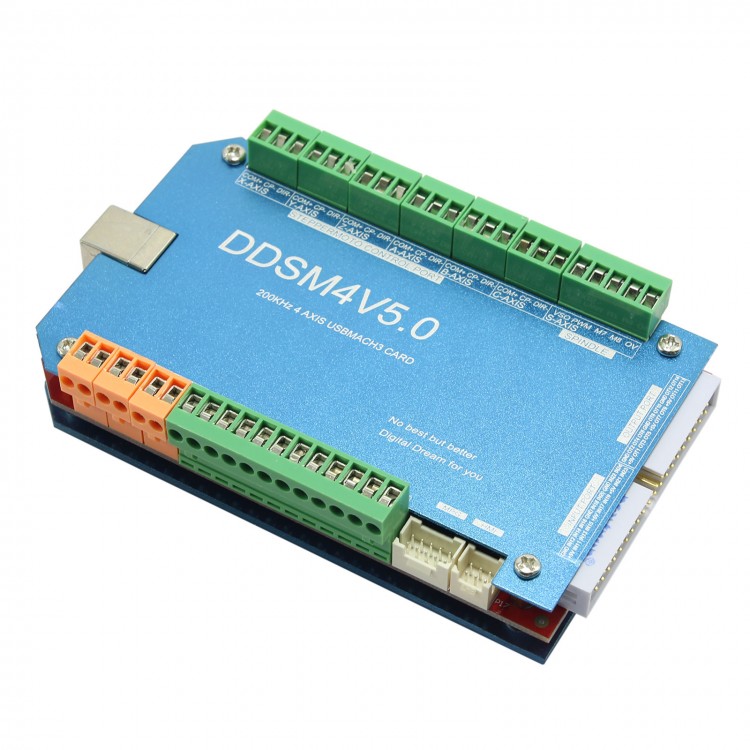

DDSM4V5.0 200KHz CNC USBMACH3 Interface Board 4 Axis Control w/ Aluminum Case
Features
- Can control 4 stepper motor at the same time
- With 24 channel programmable input interface
- With 14 channel programmeable output interface
- Main axis speed adjusting PWM / VSO way (0-10) dual mode
- USB interface
- DCDC electrical isolation
- Max 200K stepper motor control impulse output, suitable for most CNC system
- Support MACH3 software
New Features:
- Main axis speed feedback input terminal
- Integrating power supply stablization system, can resist electromagnetic interference of normal main axis motor
- Send messages to output interface chip, providing sufficient current and impulse frequency signal output
- LPC industrial main control chip, improving system stabilzation
- Unique D type shell aluminum case, practical and beautiful
- Dia 6mm high grade dual magnet ring USB signal cable, providing stability for system
