| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $95.50 | $93.55 | $90.63 | $86.73 | Contact US |
The Latest DDCS Version4.1 4 Axis Independent CNC Offline Controller Machine and Manual Pulse Generator DDPMG
$329.72
The Latest DDCS Version4.1 3 Axis Independent CNC Offline Controller Machine and Manual Pulse Generator DDMPG
$310.28
DDCS-V4.1 4-Axis Standalone Motion Controller Offline Controller Support 3 Axis/4Axis USB CNC Controller Interface
$296.11

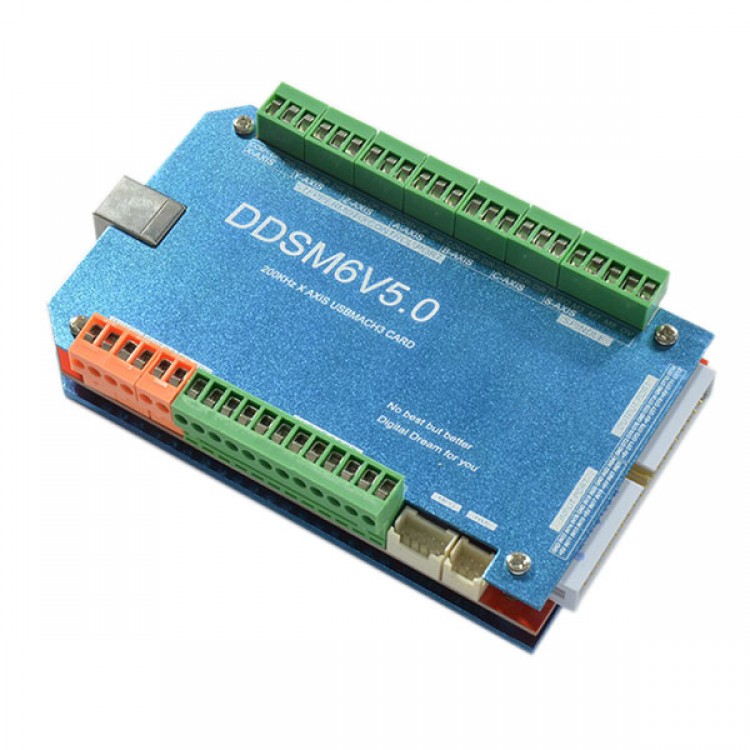

DDSM6V5.0 200KHz USBMACH3 Interface Board 6 Axis Control for Stepper Motor CNC System
Features
- Can control 6 stepper motor at the same time
- With 24 channel programmable input interface
- With 14 channel programmeable output interface
- Main axis speed adjusting PWM / VSO way (0-10) dual mode
- USB interface
- DCDC electrical isolation
- Max 200K stepper motor control impulse output, suitable for most CNC system
- Support MACH3 software
New Features:
- Main axis speed feedback input terminal
- Integrating power supply stablization system, can resist electromagnetic interference of normal main axis motor
- Send messages to output interface chip, providing sufficient current and impulse frequency signal output
- LPC industrial main control chip, improving system stabilzation
- Unique D type shell aluminum case, practical and beautiful
- Dia 6mm high grade dual magnet ring USB signal cable, providing stability for system
