DEGEN DE1121 FM /SW/MW/LW SSB Dual Conversion Radio MP3 Player

DEGEN DE1121 FM /SW/MW/LW SSB Dual Conversion Radio MP3 Player

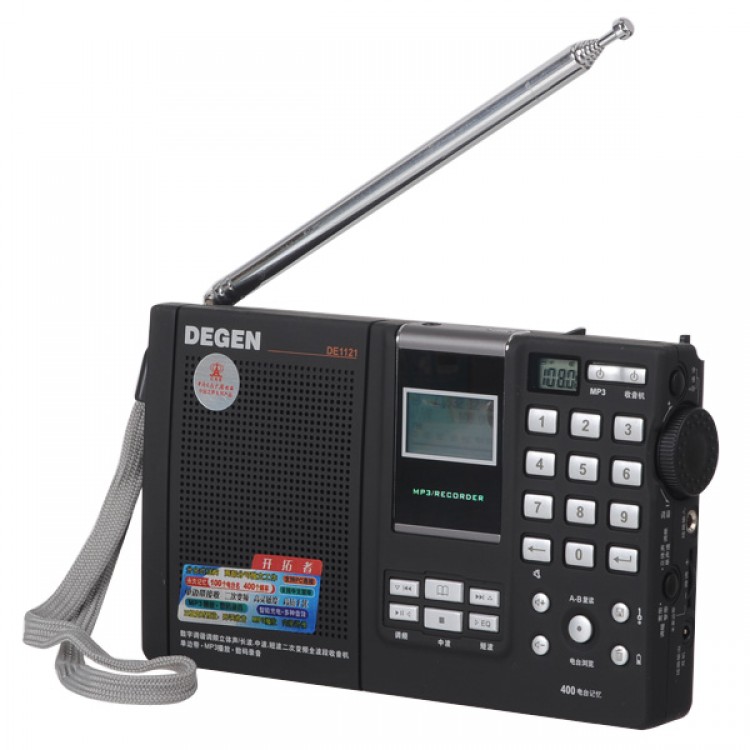

Degen DE1121 world band radio with FM stereo, MW, SW and LW bands, Single Side Band (SSB) is also included within SW band.  This DE1121 has a removable MP3 player designed on it for the broadcasting program record and music program play.This radio & mp3 player – DE1121 has excellent reception with high sensitivity, selectivity, and excellent sound quality. Also, it is very easy and logical to operate on this multi-functions receiver.

Features & Specs of RADIO:
- SSB reception and fine tuning on the shortwave broadcasting band.
- Dual conversion PLL technology used on MW, SW and LW band.
- SNR sensitivity: FM < 5uV, MW < 1mV/m, SW < 20uV.
- AM band signal selectivity: 20dB on wide bandwidth mode, 80dB on narrow bandwidth mode.
- Bandwidth selectable on the AM band: 4KHz narrow and 6KHz wide.
- Pre-setting 100 stations name in the inside memory, 4 frequencies plus on each station name, total 400 frequencies programmable pre-setting. Pre-setting station name and frequency can be customized edit, download and update via USB2.0 interface from PC.
- Multiple tuning mode: jog dial manual tuning, auto scan tuning, memory scan tuning, station name tuning, frequency direct entry tuning.
- Multiple tuning speed on jog dial tuning mode: fast, slow, and lock
- 40 level digital volume control and indication on LCD, support speaker mute function.
- LCD display for the radio and MP3 information with the backlight illumination.
- Alarm auto power on the radio by the timer pre-setting.
- Sleep auto power off the radio by the timer pre-setting from 1 to 99 minutes.
- Built-in the LOCAL-NOR-DX switch for different signal conditions using.
- Multiple tone mode on FM band: FM MONO and FM stereo.
- Keypad lock/unlock function.
- Built-in the smart charge circuit to recharge the Ni-MH rechargeable battery.
- Built-in speaker: 77mm diameter, 8 Ohm impedance.
- Built-in standard 3.5mm stereo output socket for earphone use, listen the FM stereo program via the earphone.
- Built-in standard 3.5mm line-in socket, 500mV max line-in input.
- Power supply support: 3pcs AA size 1.5V batteries, or external wall power adapter (DC 6V/300mA, center negative).
- Radio size: 163 x 103 x 32 mm / 6.4 x 4.1 x 1.3 inch.
- Radio weight : about 300g without battery installed.

Features & Specs of MP3:
- Support MP3, WAV and WMA format files (MP3 and WMA format for music play, MP3 and WAV format for record).
- Support MP3 record, MIC input record and line-in record.
- Record the broadcasting program received by radio unit on all band.
- Built-in memory: 256M Flash.
- Max record time: 16 hours.
- A-B repeat function.
- 4 cycle mode selectable and 6 EQ mode selectable.
- USB 2.0 connection to PC and direct operate under windows OS.
- 128 x 64 dots LCD.
- MP3/WMA access rate: 32Kbps - 320Kbps.
- Power supply: 1pcs DF6 battery (included).
- Size of the MP3 unit: 58 x 36 x 15 mm.
- Weight of the MP3 uni: about 36g without DF6 battery installed

Package included:
- 1 x DEGEN DE 1121 Radio with MP3 player (Chinese Version)
- 1 x DF6 Ni-MH rechargeable battery
- 3 x 1300mAh Ni-MH rechargeable batteries
- 1 x 220V or 110V AC adapter
- 1 x Stereo Earphone
- 1 x Line-in Cable
- 1 x USB connection cable
- 1 x Imitation leather radio bag
- 1 x English Manual ( PDF format in CD )
