  • Delay Output AC Current Detection Module 5A/5mA Swtich Analog Output

Delay Output AC Current Detection Module 5A/5mA Swtich Analog Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.07
  • Price in reward points: 171 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $16.73 $16.39 $15.88 $15.19 Contact US
Quantity:
Buy it now Add cart

You might like

Delay Output AC Current Detection Module 50A/50mA Swtich Analog Output

Delay Output AC Current Detection Module 50A/50mA Swtich Analog Output

$18.60

(0)
Delay Output AC Current Detection Module Max 100A Swtich Analog Output

Delay Output AC Current Detection Module Max 100A Swtich Analog Output

$19.26

(0)
Delay Output AC Current Detection Module 10A/10mA Swtich Analog Output

Delay Output AC Current Detection Module 10A/10mA Swtich Analog Output

$17.07

(0)
Delay Output AC Current Detection Module Max 10A Swtich Analog Output

Delay Output AC Current Detection Module Max 10A Swtich Analog Output

$17.00

(0)
Delay Output AC Current Detection Module 20A/ 20mA Swtich Analog Output

Delay Output AC Current Detection Module 20A/ 20mA Swtich Analog Output

$17.07

(0)
WCS2750 Delay Output DC Current Detection Module Holzer Overcurrent Protection

WCS2750 Delay Output DC Current Detection Module Holzer Overcurrent Protection

$17.95

(0)
WCS2705 Delay Output DC Current Detection Module Holzer Overcurrent Protection

WCS2705 Delay Output DC Current Detection Module Holzer Overcurrent Protection

$17.73

(0)
WCS2702 Delay Output DC Current Detection Module Holzer Overcurrent Protection

WCS2702 Delay Output DC Current Detection Module Holzer Overcurrent Protection

$17.73

(0)

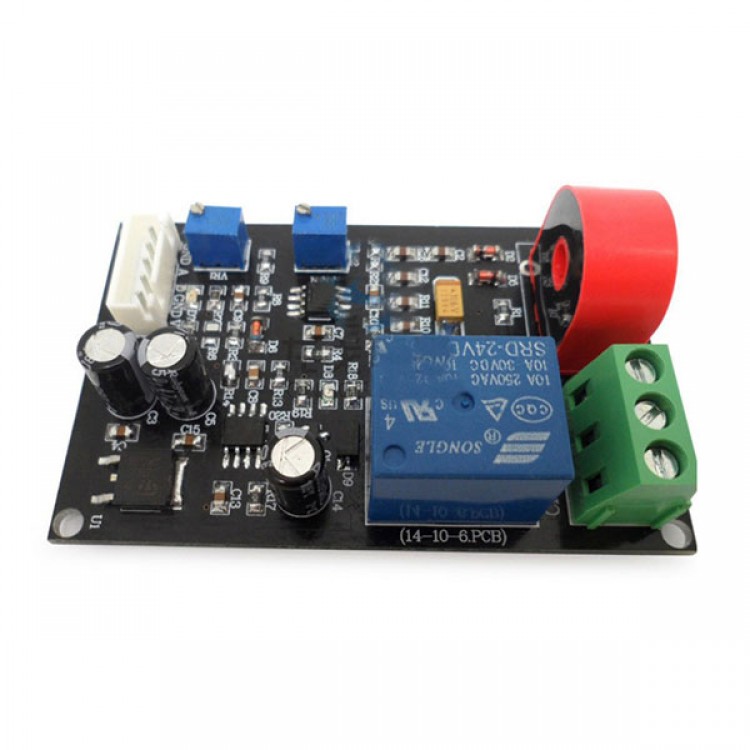

Delay Output AC Current Detection Module 5A/5mA Swtich Analog Output

Description:
- Size: 70*45mm
- Major chip: operational amplifier, mutual inductor
- Working voltage: DC24V
- Output mode: Switch (delay 3S output) the delay time can be customized, analog output (if using level signal, two resistors has to be cut off on the circuit board)
- Output overcurrent relay normally open normally close output
- Current detection range: AC 0.3-5A
- Current detection definition rate can change resistor parameters setttings
- Overcurrent signal setting points are adjustable, setting definition rate is 0.3A
- With fixing install holes
- VR1 valve potentiometer, CW is to turn up, CCW is to turn down
- VR2 amplifying potentiometer, CCW is to turn up, CW is to turn dwon
