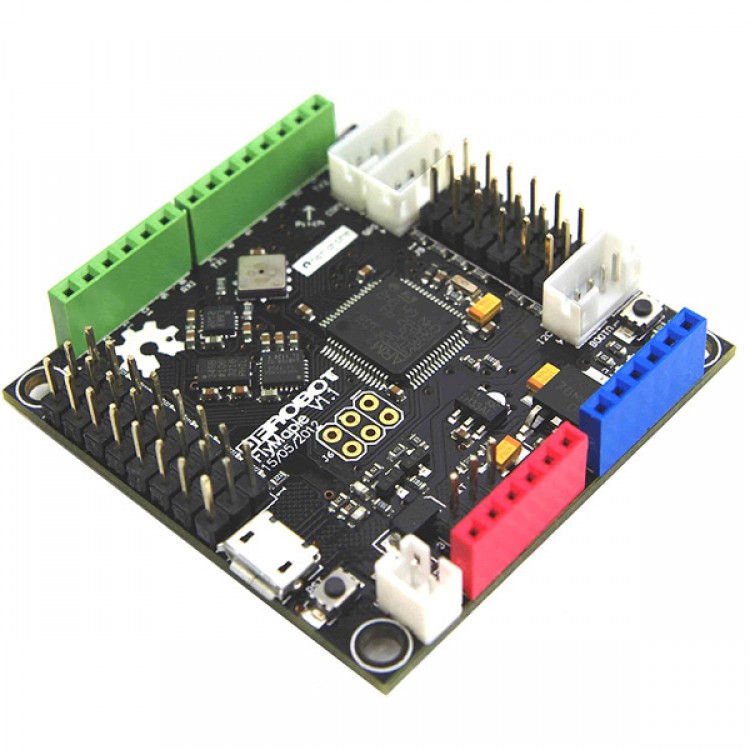

DFRobot 10DOF FlyMaple Self Balance System Flight Control Compatible with Maple Arduino
  • DFRobot 10DOF FlyMaple Self Balance System Flight Control Compatible with Maple Arduino
  • DFRobot 10DOF FlyMaple Self Balance System Flight Control Compatible with Maple Arduino
  • DFRobot 10DOF FlyMaple Self Balance System Flight Control Compatible with Maple Arduino

  • SKU:25882
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 9
  • Price:$91.48
  • Price in reward points: 915
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.65 $87.82 $85.08 $81.42 Contact US

DFRobot 10DOF FlyMaple Self Balance System Flight Control Compatible with Maple Arduino

Introduction
- Flymaple is a Quadcopter controller board, based on the Maple Project. The FlyMaple embeds a STM32F103RET6 (ARM Cortex-M3) as it's main MCU. It integrates a 3-Axis accelerometer,a 3-Axis gyroscope,a 3-Axis compass and a barometric pressure sensor. By using the 10 dgrees of freedom IMUs and powerful 72MHz high-performation microcontroller, flymaple is powerful enough to handle a complex algorithm and manage a robot motion system at the same time.
- The design of flymaple is based on the maple, which is an arduino sytle ARM processor. The Maple IDE will make Processing/Arduino programmers feel right at home. If you're familiar with Arduino then you can get started with the Maple IDE quite easily.
- Flymaple is aimed to run on the balancing robots,mobile platform,helicopters and quadcopters which require IMUs and high performance real time controllers. It has an amazing scalability, because it's compatible with the Arduino shields. FlyMaple extends 6 PWM channels  and 8 channels for GPIO for controlling ESC/Servo and capturing RC receiver input.

Applications
- Aircraft
- Balancing robots
- Indoor inertial navigation
- Altimeter

Specification
- Working Voltage: 5v
- STM32 Operating Voltage: 3.3v
- 7~12v External Power supply from the 2p JST connector
- Output Voltage: 3.3v/5v or External input power
- Microcontroller: STM32F103
- Running at 72Mhz with 32bit Arduino sytle ARM processor(Cortex-M3)
- Bootloader: Leaflabs Maple RET6 Edition
- 10 Degrees of Freedom on a single, flat board:
- ITG-3200 - triple-axis digital-output gyroscope
- ADXL345 - 13-bit resolution, ±16g, triple-axis accelerometer
- HMC5883L - triple-axis, digital magnetometer
- BMP085 - high-precision barometric pressure sensor
- Programable through an Arduino-based development environment - Maple IDE
- Compatible with most of Arduino shields
- Extends 6 channels PWM pins for controlling ESC/Servo
- Extends 8 channels GPIO for capturing RC receiver output
- 3x 4p JST connectors:
- Serial port 1
- GPS extension port
- I2C interface
- Size: 50x50x12mm
- Weight: 15g
- Envionment Friendly: Rohs Compliance

Shipping List

- Flymaple v1.1 1 unit
