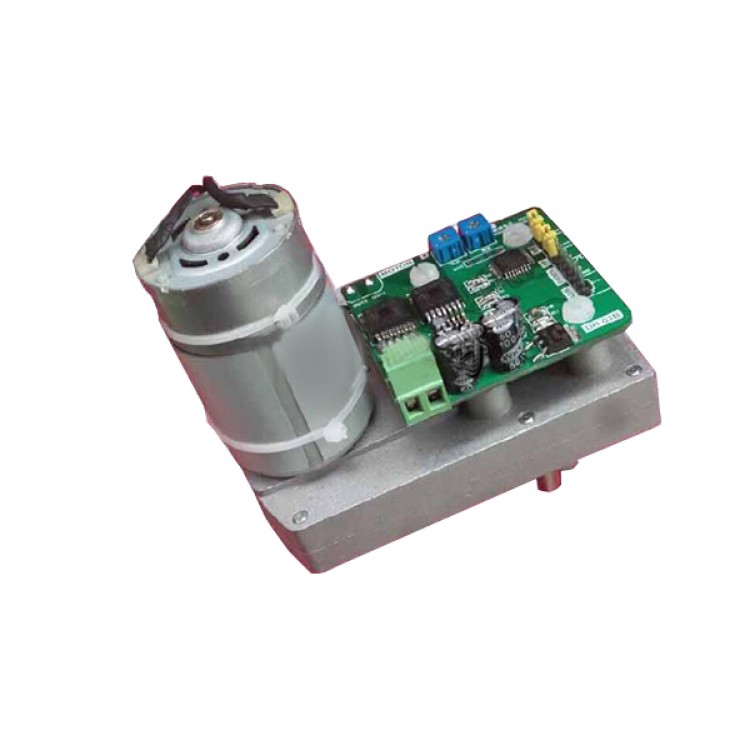

• DH-03B 180KG/CM Large Torque 330 Degree Max Servo Rotary Servo Robot Mechanical Arm 12V-24V

DH-03B 180KG/CM Large Torque 330 Degree Max Servo Rotary Servo Robot Mechanical Arm 12V-24V

Availability: In stock, usually dispatched in 1 business day

  • Price:$70.35
  • Price in reward points: 704 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $68.94 $67.54 $65.43 $62.61 Contact US
Quantity:

DH-03B 180KG/CM Large Torque 330 Degree Max Servo Rotary Servo Robot Mechanical Arm 12V-24V

Description:

- 43A large current driving chip
- 12V-24V wide voltage power supply
- Servo model: DH-03B
- Unload current: <500mA
- Large torque: 180kg.cm(24V), 1764N.cm(24V), 90kg.cm(12V), 882N.cm(12V)
- Angular speed: 0.5s/60°, 24V    1.0s/60°,12V

Rotary angle: 330 degree max, 0-330 degree

Input mode:

- PWMIN is PWM pulsing signal (remote controller, multi channel servo controller, single chip machine)
- ADIN is analog voltage signal (potentiometer)

Pulsing signal input range:
- 0.5ms-2.5ms is suitable for all multi channel servo controller, 1ms-2ms multicopter remote controller, single chip programme, Arduino

Specs:
- Voltage signal input range: 0-5V
- Control precision: 0.32degree
- Weight: 530g
- Gear material: steel
- Size: 95.5mm X 60.5mm X 102.6mm
- Suitable for medium large size robot, mechanical arm, or large power large torque controlling aera
